Magnetron Sputtering: A Concise Overview

Sputtering ejects target material by bombarding it with high-energy particles, known as DC or diode sputtering. This method suffers from slow, expensive deposition. Instead, modern techniques like magnetron sputtering energize particles more efficiently. Sputtering itself remains a key process for applying coatings. It deposits diverse materials including metals, ceramics, and plastics onto substrates, modulating surfaces atom by atom. Alongside methods like chemical vapor deposition, sputtering enables precise engineering of thin films. Its accuracy drives innovation across industries.

Magnetron sputtering, emerging in the 1970s, energized the diode method with magnetic fields. This enhancement accelerated deposition rates for superior coatings. Today, magnetron sputtering precisely applies metals, ceramics, alloys, and diverse materials onto myriad targets up to a millimeter thick. Controlled ion bombardment dislodges target atoms that then blanket substrates. Strong magnetic confinement near cathode surfaces amplifies ionization events, sustaining dense plasma. This elegant approach elevates sputtering capabilities, enabling high-quality films. Magnetron advancements continue expanding accessible materials and applications across sectors.

Magnetron sputtering utilizes confined plasma to bombard target materials, ejecting surface atoms. These liberated atoms traverse the vacuum, depositing as thin films on substrates. This elegant technology generates robust yet controlled plasma via magnetic fields, empowering precise coatings. With superior performance, magnetron sputtering now drives innovations across commercial sectors. Its efficient deposition expands applications from microelectronics to wear-resistant surfaces. Continued advancements will further elevate magnetron sputtering's capabilities, cementing its indispensable role in modern surface engineering.

How Magnetron Sputtering Works: A Step-by-Step Overview

Though seemingly straightforward, magnetron sputtering hides intricate complexities. Its ingenuity lies in strong magnetic fields near the target, setting it apart from basic DC sputtering. This key enhancement empowers the elegant magnetron process to efficiently generate robust plasma. Controlled ion bombardment then ejects target atoms for superior coatings. While the core idea is simple, optimizing every variable for different materials and applications requires deep expertise. Continued research illuminates the subtleties, advancing magnetron technology to drive more innovations.

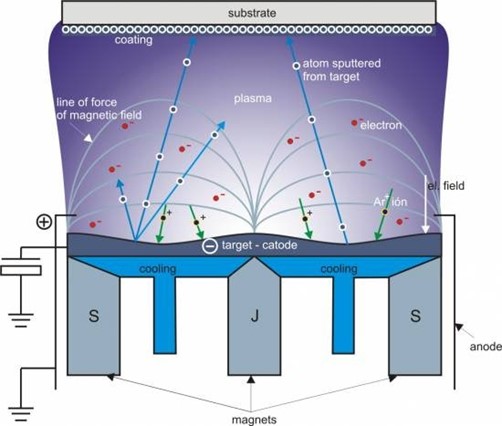

The magnetic field redirects electrons near the target, confining plasma there. This prevents damage to the developing thin film. Electrons spiral along magnetic flux lines instead of getting pulled to the substrate. Careful control of the dense plasma region maximizes ion bombardment of the target surface. Atoms ejected from this impact then blanket the substrate, enabling precise, efficient coatings.

The magnetron power source generates high negative voltage, around -300V, on the target. This attracts energetic argon ions, accelerating them into the target. Their bombardment transfers significant kinetic energy to surface atoms. When this exceeds roughly three times the surface binding energy, akin to the heat of sublimation, atoms eject. Meanwhile, electrons traverse extended paths near the target surface, escalating the ionization probability of argon atoms. This sustains a dense plasma brimming with ions to perpetuate target atom ejection. The elegant yet powerful magnetron system relies on controlled, self-sustaining plasma. Precise ion bombardment dislodges target atoms which then blanket substrates, enabling exceptional coatings atom by atom. Continued advancements expand accessible materials and drive innovations across application spaces.

Denser ionized plasma increases target atom ejection, boosting sputtering efficiency and deposition rates. This enables faster thin film growth. Confinement of plasma near the target also protects developing films. Stray electrons and ions traverse shorter paths to the target rather than bombarding the substrate surface. Overall, the ingenious magnetron design sustains robust yet controlled plasma. This drives efficient, precise coatings, cementing magnetron sputtering as a versatile deposition technique across applications.

Various types of magnetron sputtering systems

Direct Current (DC) Magnetron Sputtering

DC sputtering ejects target atoms by ion bombardment. Magnetrons shape their trajectories, enabling calculated deposition. This direct current method utilizes inert gas plasma in a vacuum chamber. Applied voltage accelerates positive ions into the negatively-charged target. The impact dislodges target atoms, which then coat the substrate as a thin film. Controlled ionized gas molecule collisions drive the physical vapor deposition process. DC magnetron innovations allow specifying required coating thickness and structure. Continued advancements expand accessible material properties.

Radio Frequency (RF) Magnetron Sputtering

RF magnetron sputtering utilizes radio frequency electric fields to accelerate argon ions into the target. This ion bombardment ejects target atoms multidirectionally. Careful substrate positioning outside the plasma prevents etching while enabling deposition. The sputtered atoms blanket the substrate, growing thin films atom by atom. RF sputtering reduces charge accumulation on target surfaces compared to DC methods. This minimizes localized erosion from ion focus, known as racetrack erosion. Instead, RF systems promote even target utilization. Continual voltage oscillation spreads ion bombardment, sustaining plasma to increase efficiency. RF advancements drive innovations, expanding accessible materials and structures across applications from microelectronics to optics.

Advantages

 High deposition rates - Magnetron systems achieve much higher sputtering and deposition rates compared to simple diode sputtering methods. This improves throughput.

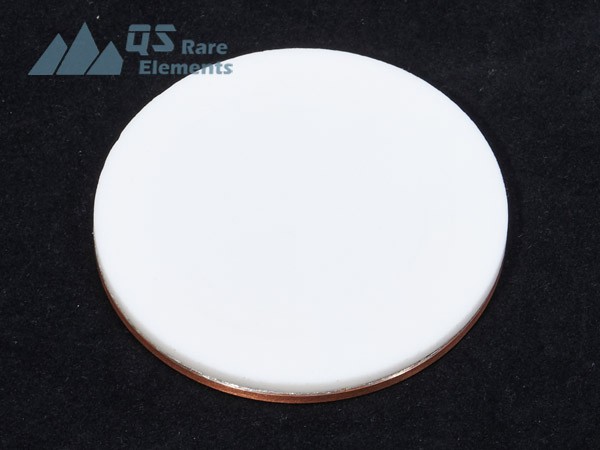

 Low substrate heating - The process can deposit films at relatively low temperatures. This allows coating heat sensitive materials like plastics,e.g a PTFE target.

 Uniform coatings - Magnets confine plasma near the target, resulting in uniform erosion. This enables homogeneous coatings.

 Thicker coatings - Films with thicknesses from nanometers to millimeters can be deposited using magnetron sputtering.

 Versatile materials - Metals, alloys, ceramics, semiconductors and more can be deposited by sputtering their target.

 Adhesion - Excellent adhesion between the sputtered films and substrate are achievable. Stress can also be controlled.

 Compatibility - Sputtering is compatible with photolithography for selective area deposition.

 Large area coating - Industrial scale magnetrons can coat large areas up to 3 meters wide.

 Precision - Automated, controlled process conditions allow precision thickness and composition.

Application of Magnetron Sputtering Systems

Magnetron sputtering enables diverse essential coatings. This versatile deposition method generates wear-resistant, low-friction, and corrosion-resistant films. It also produces decorative and functional optical or electrical coatings. Continual innovation expands magnetron sputtering applications across crucial industrial needs.

l Microelectronics - Sputtering is used to deposit thin film layers during semiconductor fabrication to make integrated circuits, sensors, MEMS, and more. Common materials include metals like aluminum and tungsten, along with dielectrics like silicon dioxide and silicon nitride.

l Optics - Optical coatings made by sputtering enable applications like anti-reflective surfaces, waveguides, optical filters, and precision mirrors. Dielectrics, metals, and metal oxides can be deposited.

l Tribological coatings - Hard wear-resistant coatings of materials like titanium nitride, tungsten carbide, chromium nitride, and diamond-like carbon minimize friction and wear on components like bearings, tools, molds, and orthopedic implants.

l Architectural glass - Sputtering applies coatings for decorative colored glass, smart windows with variable sun screening, and low-emissivity (low-E) glass to conserve building energy.

l Magnetic media - Magnetic storage layers in hard disk drives and magnetic tape recording heads rely on precise sputtered thin film deposition.

l Decorative coatings - Sputtering deposits wear-resistant, corrosion-resistant and colored finishes onto items like jewelry, eyeglass lenses, ceramics, plastics, and metal consumer products.

l Solar cells - Thin film solar photovoltaic cells often utilize sputtered light-absorbing layers like CdTe or CIGS along with various transparent conducting oxide layers.

Conclusion

Magnetron sputtering continues rapid advancements. Closed-field unbalanced designs, pulsed operation, variable magnetic fields, and duplex engineering now expand capabilities. These elegant innovations cement magnetron sputtering as the premier process for numerous essential industrial coatings. Ongoing developments further transform this vital deposition technology.
