Advanced Ceramics
Advanced ceramic products, including boron nitride, lanthanum hexaboride, and zirconia, are highly specialized materials known for their exceptional properties and applications in various industries.
Boron nitride is a versatile advanced ceramic with excellent thermal and electrical insulation properties. It finds applications in high-temperature environments, such as crucibles for molten metal processing, thermocouple protection tubes, and insulators in PVD equipment.
Lanthanum hexaboride, or LaB6, is a refractory ceramic material known for its high electron emission capabilities. It is widely used in electron microscopy as a filament material for electron guns, cathodes in electron beam welding, and electron probe microanalysis systems.
Zirconia, also known as zirconium dioxide (ZrO2), is a ceramic material renowned for its exceptional mechanical strength, wear resistance, and high-temperature stability. Yttria stabilized zirconia (YSZ) is the most regular zirconia you could buy in market. It is extensively used in dental applications, such as dental crowns and implants, due to its biocompatibility and aesthetic appeal. Zirconia is also utilized in YSZtructral ceramic parts, ball bearings, mortar for powder process, crucibles in metallurgy, and thermal barrier coatings for gas turbine engines.
Related Articles
Zirconia Ceramic: Unique Properties and the Role of Stabilization
Brief Introduction Of Lanthanum Hexaboride Lab6
-
Boron Nitride Protective Tubes
Material: BN99, ZCBN, BN-AlN, HBN
Catalog No.:BN-PT MOQ: $250
ID: >2mm Length:<16"
Typical Lead Time: 2~3weeks
-
Boron Nitride Blank
High purity/Enhanced hot pressed hexagonal boron nitride rods
Catalog No.:BN-BK
MOQ: $250
Max. Size: 12" dia. x 16" H
-
Boron Nitride Disc
Material: BN99, ZCBN, BN-AlN, HBN
Diameter: 10~400mm
Thickness: >2mm
Typical Lead Time: 2~3weeks
Click here for specification of our TPBN boron nitride
-
Aluminum Nitride (AlN) tubes
Catalog No.: CRALN-tbMaximum Dimensions: 300mm Diameter
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
-
Aluminum Nitride (AlN) Rods
Catalog No.: CRALN-CP
Maximum Dimensions: 300mm Diameter
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
-
Aluminum Nitride (AlN) Machining Parts
Catalog No.: CRALN-CP
Maximum Dimensions: 300mm Diameter
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
-
Aluminum Nitride (AlN) substrate
Catalog No.: CRALN-SB
Maximum Dimensions: 300mm Diameter
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
-
Aluminum Nitride (AlN) Sheets
Catalog No.: CRALN-ST
Maximum Dimensions: 300mm Diameter
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
-
Standard MBE Crucible (PBN C60-54)
Composition:Pyrolytic Boron Nitride (PBN)
Catalog No.:PBN C60-54/415-00-005
Purity:99.99% Chemical content of QSAM PBN crucible
Pysical properties of QSAM PBN crucible
-
List of standard PBN crucibles
Material: Pyrolytic Boron Nitride /PBN
Production process: CVD
Type: LEC, MBE, VGF, Conical
Purity: >99.99%
Supplier: QSAM
-
Zirconia (YSZ) Rod
Material: Yttria stabilized zirconia (YTZP)
Content: 3~5% yttria
Catalog No.: CRYSZ-RD
Zirconia purity: 99%
-
-
Zirconia (YSZ) Mortar and pestles
Material: Yttria stabilized Zirconia (YSZ, YTZP)
Catalog No.:CRYSZ-MT
Dimensions:Diameter 30~200mm
Supplier suggested price: $750.00 for 90mm mortar and pestle set
-
Yttria Stabilized Zirconia (YSZ) Grinding Jar
Material: Yttria stabilized zirconia (YSZ/YTZP)
Content: 3~5% yttria
Catalog No.: CRYSZ-GJ
Zirconia purity: 99%
-
Boron Nitride Nozzle
Hot pressed hexagonal boron nozzles
Material: BN99,ZCBN,ALNBN,BNSIC
Catalog No.:BN-NZ
-
Boron Nitride Rod
High purity hot pressed hexagonal boron nitride rods
Purity: 99.5% (99.9% for TPBN)
Ref. Price: $24/Inch3(rectangular material the rod takes)
Max. Size: 12" dia. x 13" H
Click here for specification of our TPBN
-
Pyrolytic Boron Nitride Custom Parts | PBN parts
Material: Pyrolytic Boron Nitride /PBN
Production process: CVD
Purity: >99.99%
Supplier Brand: QSAM
-

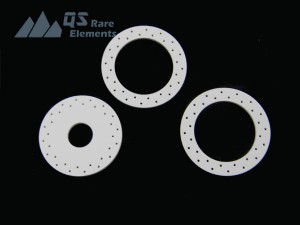

PBN Filament Ring
Diamenter: 10mm - 320mm Thickness: 0.5mm - 3mm
Catalog: PBN-FRING
Purity: 99.99%
Common lead time: 2~3 weeks
Chemical content of QSAM PBN crucible
Pysical properties of QSAM PBN crucible
-
Pyrolytic Boron Nitride Custom Machined Parts
Material: Pyrolytic Boron Nitride /PBN
Production process: CVD
Purity: >99.99%
Supplier: QSAM
-

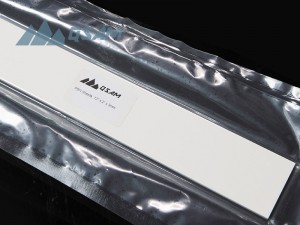

Pyrolytic Boron Nitride Sheet | PBN Sheet
Material: Pyrolitic Boron Nitride /PBN
Production process: CVD
Purity: >99.99%
Supplier: QSAM
