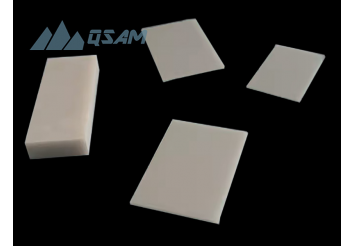

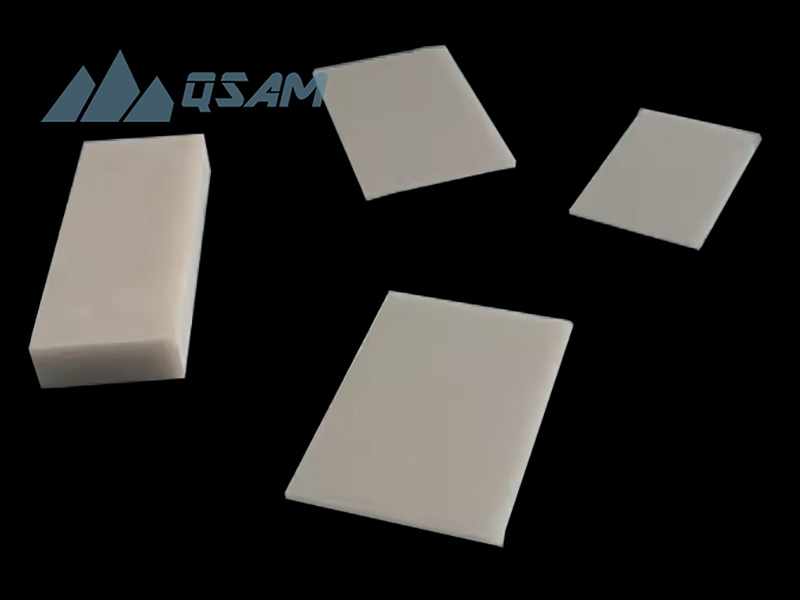

Aluminum Nitride (AlN) Sheets
Catalog No.: CRALN-ST
Maximum Dimensions: 300mm Diameter
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
- Product Details
Aluminum nitride (AlN)
Aluminum nitride (AlN) sheets, a material esteemed for its technical properties and performance in challenging environments. Our AlN sheets demonstrate a thermal conductivity greater than 200 W/mK, which is essential for applications requiring rapid and efficient heat dissipation. Coupled with a volume resistivity surpassing 1013 ohm cm, these sheets provide reliable electrical insulation, even under high temperature conditions.
With a dielectric constant of about 9 at 1MHz, and a low dielectric loss tangent (3.8×10-4), AlN sheets maintain their insulating properties across a range of frequencies, making them suitable for high frequency applications. The electric strength of the material is rated at 17 KV/mm, which allows for its use in high-voltage environments without breakdown.
The coefficient of thermal expansion of AlN sheets is matched to silicon (4.6×10-6/C), which helps to manage thermal stresses that could lead to device failure. This matching is particularly beneficial for electronic substrates, where dimensional stability is crucial for component longevity.
QSAM AlN Sheets
In the realm of electronics, QSAM Inc's AlN sheets serve as substrates for LEDs, power semiconductors, and integrated circuits. The high thermal conductivity and stable electrical properties of AlN make it an excellent candidate for substrates in sophisticated electronic components where performance and long-term reliability are paramount. Our AlN sheets are integral in creating devices that perform consistently, even when subjected to intense thermal and electrical demands.
|
Chemical formula: |
AlN |
|
Appearance: |
Light grey solid ceramic |
|
Density: |
3.3g/cc |
|
Melting point: |
2500C |
|
Thermal Conductivity: |
170~200W/m K @R.T. |
|
Thermal expansion: |
4.6 x10-6 |
|
Resistivity: |
1.5 x 1013 |
|
Dielectric Constant: |
10.2 |
|
Dielectric Strength: |
17KV/mm |
Aluminum Nitride Sheet Packaging
As a ceramic material, AlN material is quite fragile in a lot of cases. The aluminum nitride sheet are usually hold in plastic bags by vacuum, and protect with heavy foam.
