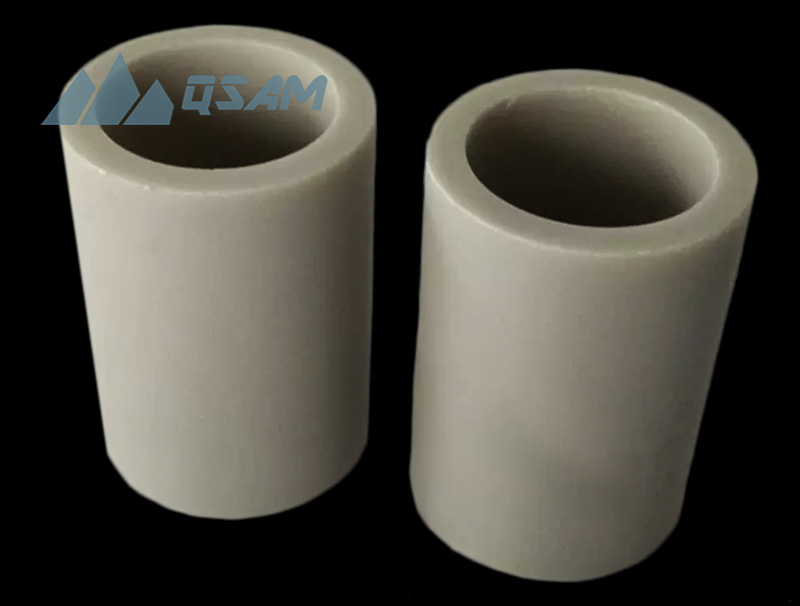

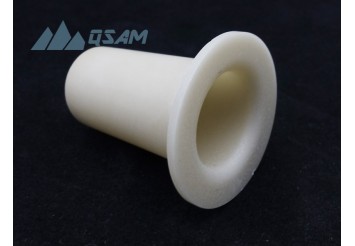

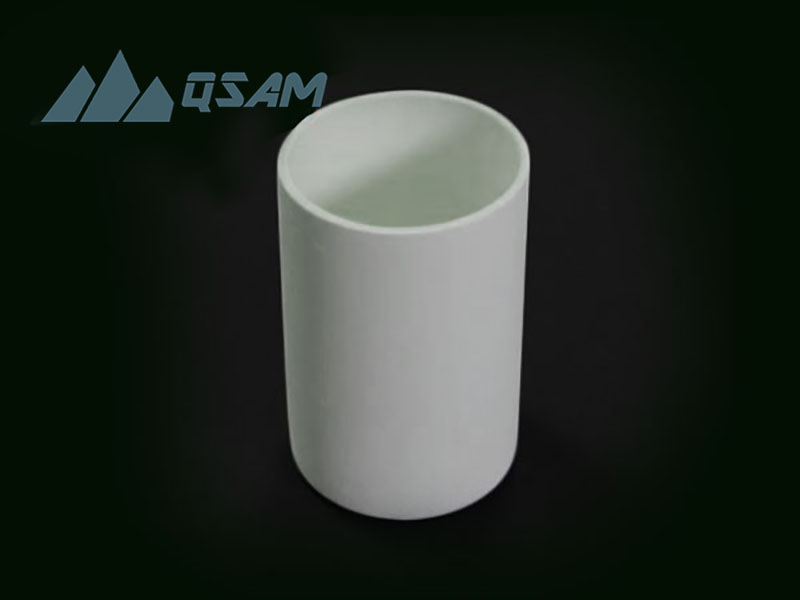

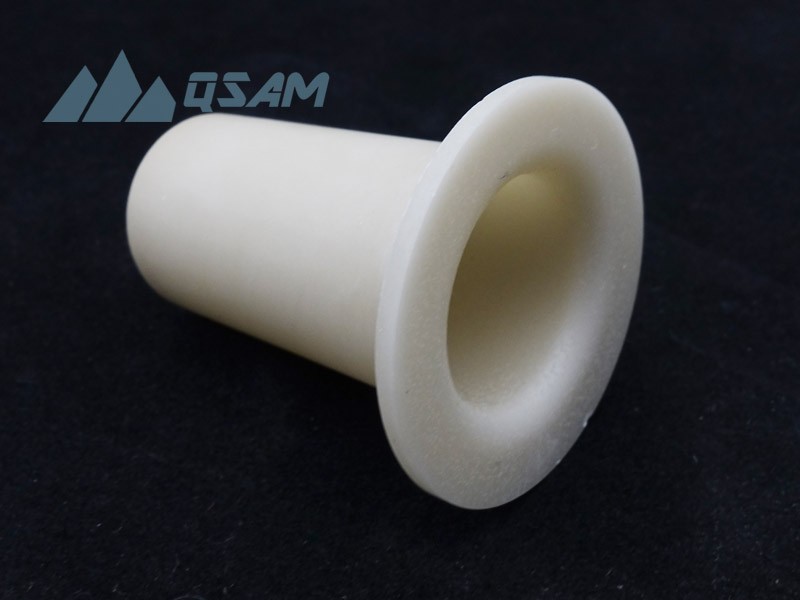

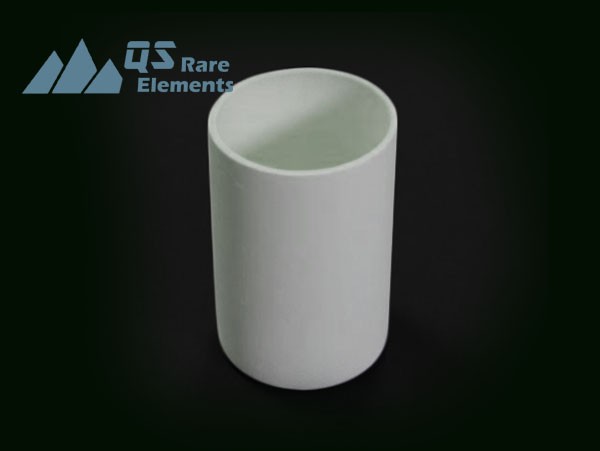

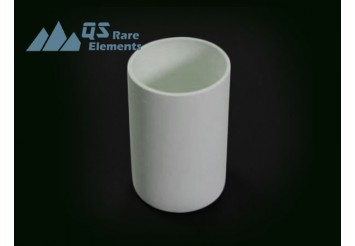

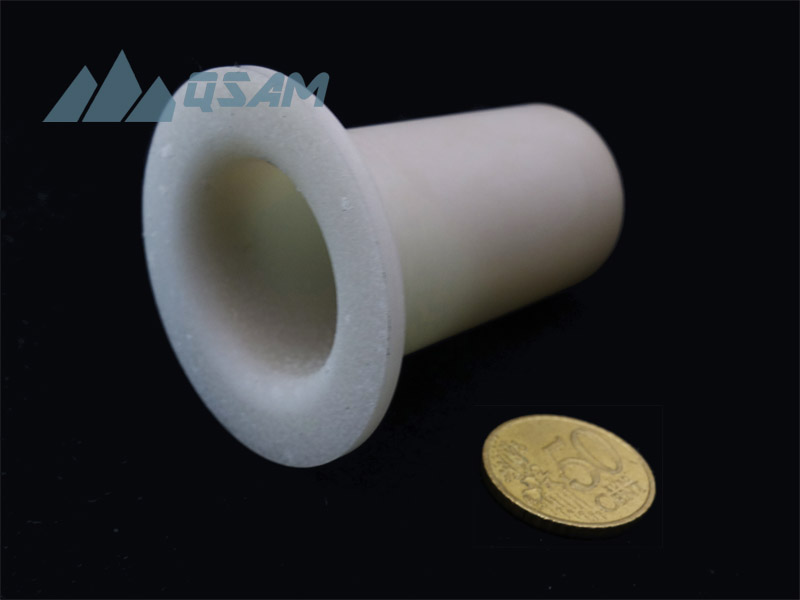

Aluminum Nitride Crucibles
Catalog No.: CRALN-CB
Maximum Dimensions: 100mm Diameter x 100mm Height
Density: 3.3g/cc
Thermal Conductivity: 170~200W/mK
- Product Details
Aluminum nitride (AlN)
Aluminum nitride (AlN) ceramic material was found to be promising in microelectronics applications, due to its very high thermal conductivity and property as an insulating ceramic. Recently, the most common application for aluminum nitride is substrate for electronics or chip carriers. Along with PBN crucibles,AlNis also one of the selected materials to build crucibles for grow crystals of GaN (gallium nitride)
Aluminum nitride crucibles could withstand about 1300°C in air, without bulk oxidation, although the process started after 700°C. In vacuum,AlNdecompose at 1800°C. AlN melts at 2200°C, with inert atmosphere protection. In general, the working temperature for AlN products is 800°C in air, 1700°C in vacuum and 2100°C in inert atmosphere.
QSAM AlN Crucibles
As a supplier of advance ceramic materials, QS Advanced Materials is working closely with manufacturers of raw materials and ceramic machining capability to provide quality aluminum nitride products with highly efficient price. We are continuously providing aluminum nitride crucibles in large scale for multiple leading companies, universities and research organization in the USA, UK and EU countries. Please feel free to send us the drawing of your crucible and request a quote.
|
Chemical formula: |
AlN |
|
Appearance: |
Light grey solid ceramic |
|
Density: |
3.3g/cc |
|
Melting point: |
2500°C |
|
Thermal Conductivity: |
170~200W/m·K at room temperature |
|
Thermal expansion: |
4.6 x10-6 |
|
Resistivity: |
1.5 x 1013 |
|
Dielectric Constant: |
10.2 |
|
Dielectric Strength: |
17KV/mm |
Aluminum Nitride Crucible Packaging
As a ceramic material, AlN material is quite fragile in a lot of cases. The aluminum crucibles are usually hold in plastic bags by vacuum, and protect with heavy foam.
