Boron Nitride Cylindrical crucible (60mm D x 90mm H)
Catalog No.:BN-CCR6090Purity: 99% (BN99)
Minium order quanity: 1 ea
Unit Price: $600.00
- Product Details

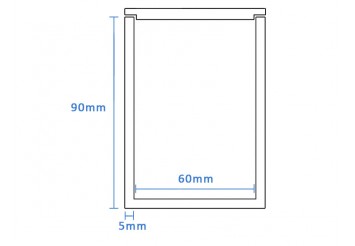

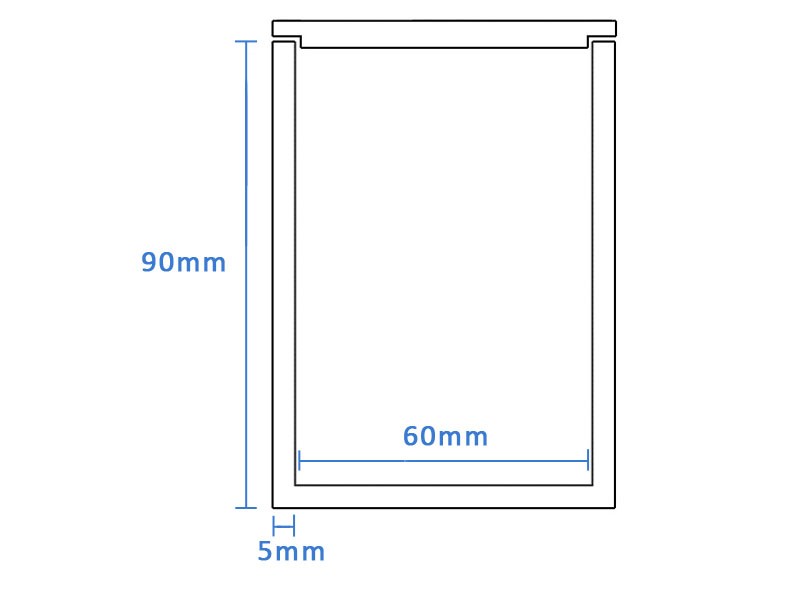

Standard boron nitride crucible specification
Product: Boron Nitride Cylindrical Crucibles(250 cc)
ID: 60mm
Height: 90mm
Wall thickness: 5mm
Price: $600.00/ea x 1 ea(Minimum order: $600 for a pack of 1 ea)
*Regular products could be delivered in 1 week. For boron nitride crucibles with other dimensions or customized shape, please check our page for custom designed BN crucibles.
Boron nitride crucible introduction
Hot pressed hexagonal boron nitride (hBN) ceramic is a remarkable synthetic material known for its exceptional thermal stability and electrical insulating properties. It features a hexagonal crystal lattice structure, similar to graphite, but with distinct characteristics in electrical conductivity. With high thermal conductivity, hBN ceramic efficiently dissipates heat, and chemical inertness making it an ideal material for crucible. Additionally, its excellent electrical insulation makes it valuable in electrical and electronic applications that require isolation such as PVD equipment. Furthermore, hBN ceramics low coefficient of friction provides lubrication and wear resistance, particularly in high-temperature environments.
Available boron nitride materials
|
BN99 (Data Sheet) |
>99% Pure boron nitride material |
|
BN-SiC (Data Sheet) |
SiC enhanced boron nitride |
|
BN-AlN (Data Sheet) |
Aluminum Nitride enhanced BN |
|
TPBN (Data Sheet) |
Thermal purified high purity BN |
|
ZCBN (Data Sheet) |
Zirconia enhanced BN |
|
PBN (Data Sheet) |
Pyrolytic boron nitride/CVD boron nitride |
Other boron nitride products
| Boron nitride custom parts |
| Boron nitride insulators |
| Boron nitride plate |
| Boron nitride nozzle |
| Boron nitride rod |
