Boron Nitride Machinable Ceramic
Catalog No.:BN-MC
Available Materials: BN99, TPBN, ALNBN, ZCBN
Minium order quanity: $24/cub inch(reference only)
Typical Lead Time:1~2 weeks
Click here for specification of our BN99 boron nitride
Click here for the SDS document of SDS of boron nitride bars
- Product Details
Common properties and advantage of boron nitride (compared with the other ceramic materials)
>Low wetability to molten metal>Relatively high thermal conductivity with low thermal expansion
>Relatively high thermal shock resistance
>Extremely high working temperature with proper inert gas protection
Prices of regular stock boron nitride machinable ceramic
| Product description | MOQ | Price |
| BN99 pure boron nitride rod (dia. 1"x L. 12") | 2 ea | $195 |
| TPBN high purity boron nitride rod (dia. 1"x L. 12") | 2 ea | $220 |
| BN99 pure boron nitride rod (dia. 2"x L. 12") | 1 ea | $700 |
| BN99 pure boron nitride rod (dia. 3"x L. 12") | 1 ea | $1400 |
| BN99 high purity boron nitriderod (dia. 4"x L. 12") | 1 ea | $2700 |
| TPBN high purity boron nitriderod (dia. 2"x L. 12") | 1 ea | $780 |
| TPBN high purity boron nitriderod (dia. 3"x L. 12") | 1 ea | $1580 |
| TPBN high purity boron nitride rod (dia. 4"x L. 12") | 1 ea |
$2900 |
*Any dimension within 16 x 16 x 8 inch blank is possible to make.
*Listed price for reference only. Please contact us for availability, latest cost and possible discounts.
QSAM's machinable boron nitride ceramics
High purity boron nitride could withstand higher temperature in vacuum than lower purity and composite boron nitride products. However, the composite materials generally enhanced mechanical properties such as bending strength, and the high temperature performance in air. Due to the low wetability with metals, boron nitride rod is an ideal material for metal melting works, especially for high purity material metal in vacuum.
QS Advanced Materials is a leading supplier of boron nitride machinable ceramics in the market. Our products are available in the largest sizes, with dimensions up to 16" x 16" x 8". In addition to the conventional BN99 pure boron nitride ceramics, we also offer high purity TPBN with a purity of 99.9%, and enhanced boron nitride ceramic with improved hardness and wear resistance (ALNBN, ZCBN,etc.). All of our BN products are machinable, and we can supply raw materials for your workshop as well as finished products based on customer drawings. Choose QS Advanced Materials for the highest quality boron nitride machinable ceramics on the market.
BN99 specifications
|
Appearance |
White |
|
|
Boron Nitride Content |
>99% |
|
|
Crystalline |
hexagonal |
|
|
Mechanical Properties |
|| |
T |
|
Bending Strength MPa |
35 |
28 |
|
Compressive Strength MPa |
85 |
72 |
|
Young Modulus GPa |
21 |
70 |
|
Density |
2.0 g/cm3 |
|
|
Porosity |
6.8% |
|
|
Hardness ~Knoop |
11 kg/mm2 |
|
|
Thermal Conductivity |
40W/mK |
|
|
Thermal Expansion RT |
1.4 10-6/K |
0.7 10-6/K |
|
Thermal Expansion 1000~1600K |
0.9 10-6/K |
0.6 10-6/K |
|
Thermal Expansion 1600~1900K |
0.7 10-6/K |
0.7 10-6/K |
|
Dielectric Constant |
4.0 |
|
|
Dielectric Strength |
79KV/mm |
|
|
Electrical Resistance RT |
>10^14ohm cm |
|
|
Chemical Composition |
Na2O 0.08% Al2O3 0.04% SiO2 0.03% CaO 0.48% BN 99.3% |
|
Other boron nitride materials and their specifications.
|
BN-SiC (Data Sheet) |
SiC enhanced boron nitride |
|
AlNBN (Data Sheet) |
Aluminum Nitride enhanced BN |
|
TPBN (Data Sheet) |
Thermal purified high purity BN |
|
ZCBN (Data Sheet) |
Zirconia enhanced BN |
|
PBN (Data Sheet) |
Pyrolytic boron nitride/CVD boron nitride |

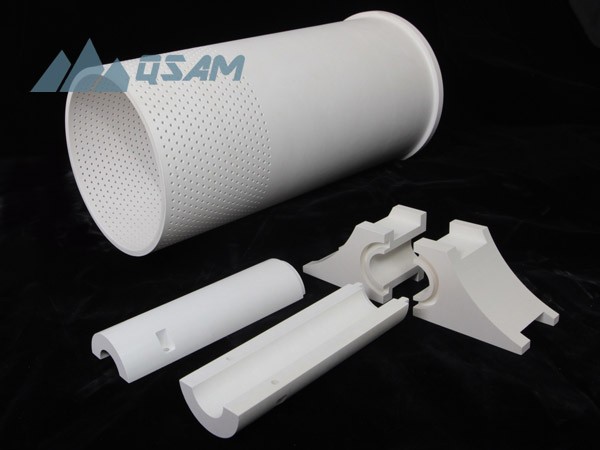

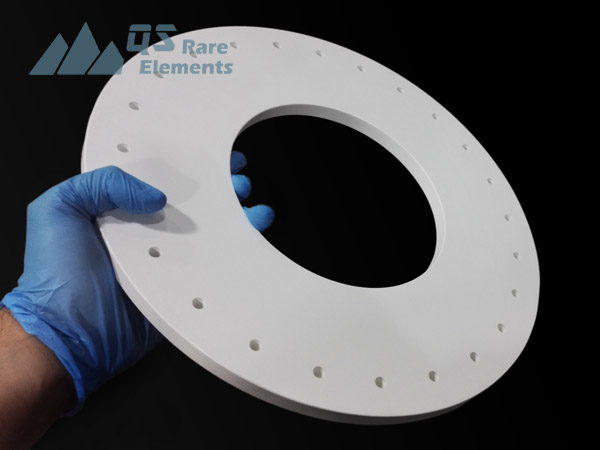

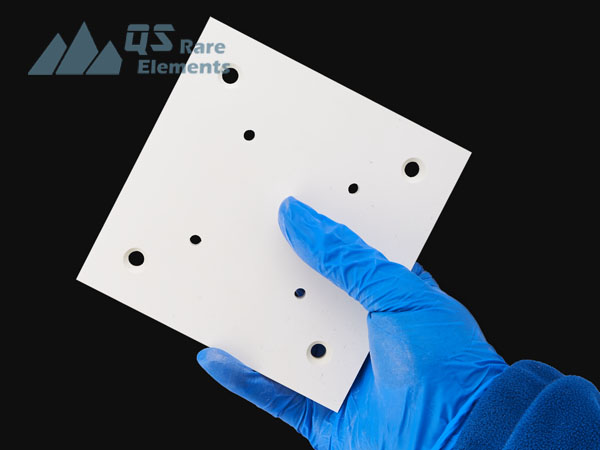

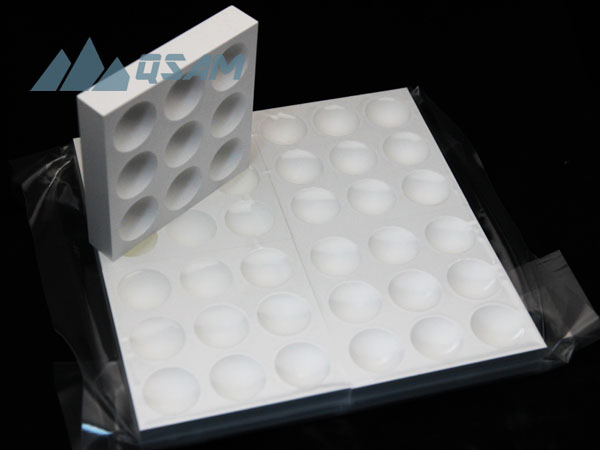

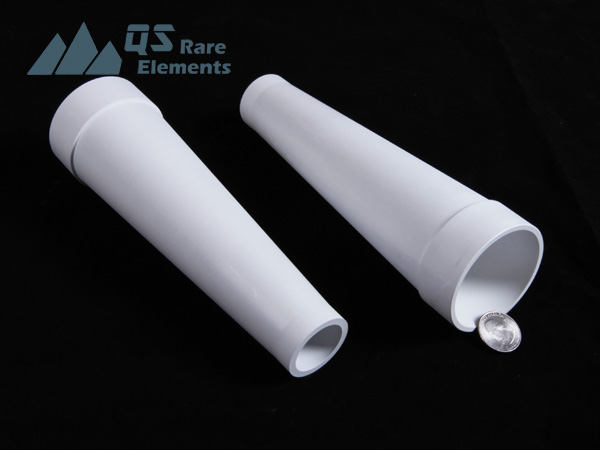

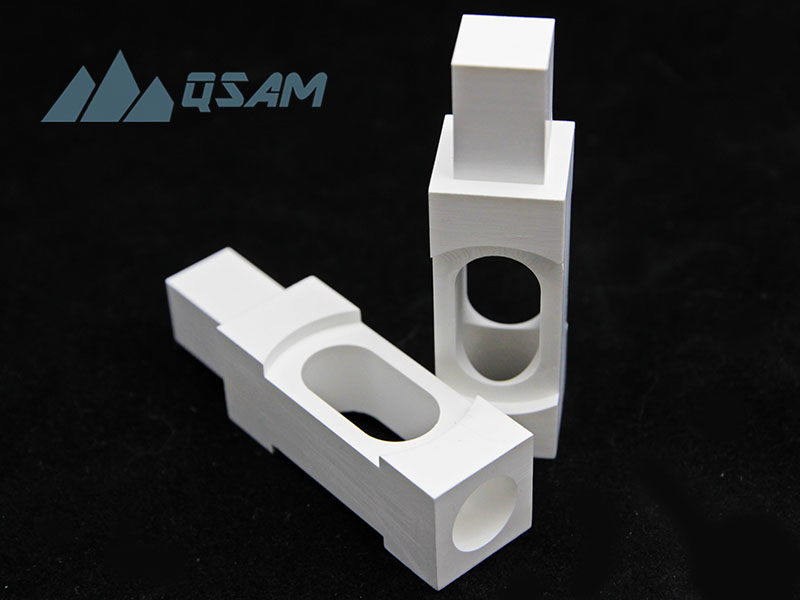

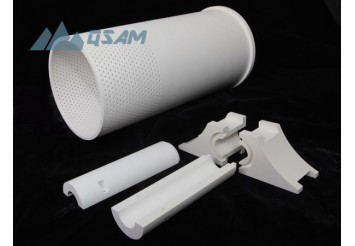

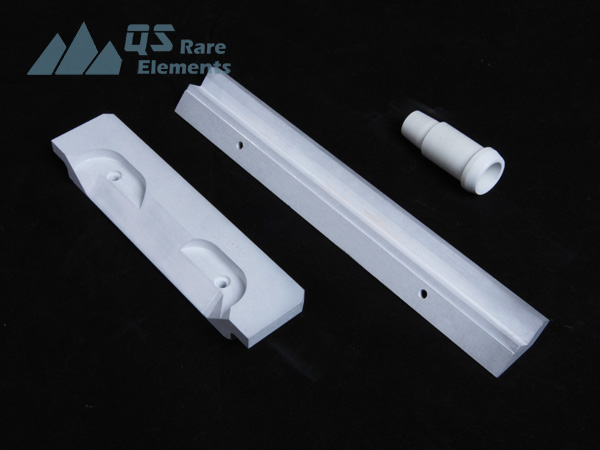

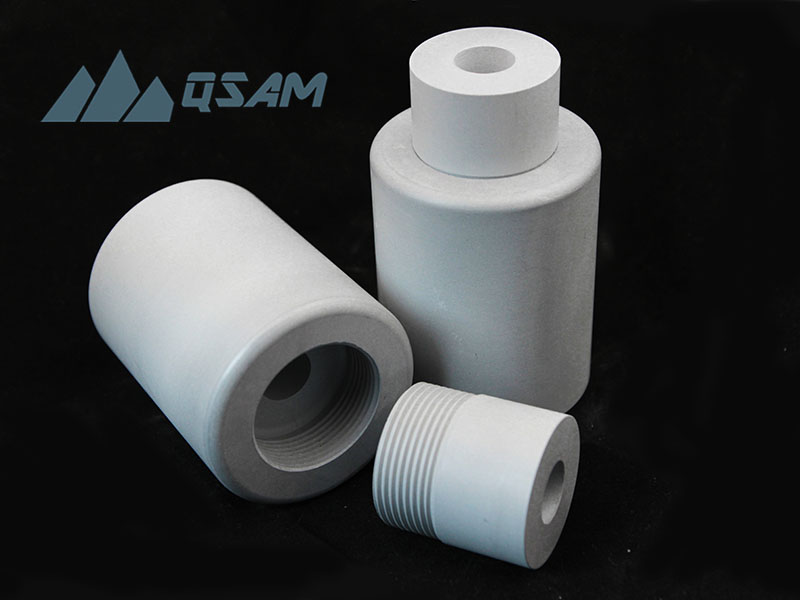

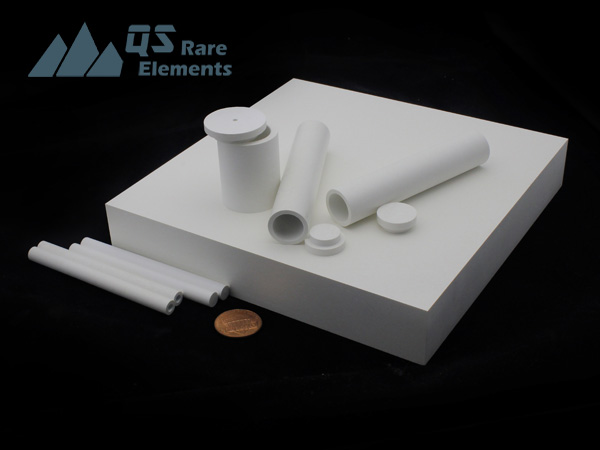

Photos of our boron nitride machined parts
About other boron nitride brands
Hexagonal Boron Nitride (h-BN) has a hardness of about 4, making it a machinable material. HBN/HBR originally referred to product codes for other manufacturers and denoted boric oxide or calcium-enhanced boron nitride materials, respectively. QSAM also provides calcium borate-enhanced boron nitride rods with similar performance to HBN and HBR. While calcium (or zirconium) enhanced HBR (or ZSBN) is the most common composite boron nitride material, we also produce a range of other composite boron nitrides, such as AlN-BN and SiC-BN.
