Boron Nitride Rod
High purity hot pressed hexagonal boron nitride rods
Purity: 99.5% (99.9% for TPBN)
Ref. Price: $24/Inch3(rectangular material the rod takes)
Max. Size: 12" dia. x 13" H
Click here for specification of our TPBN
- Product Details
Llist and price of regular boron nitride rods
Click the "Price" below to make a credit card quick purchase, for our most regular boron nitride rods.
*We do need to collect the shipping address and a contact phone number in the payment page
*Please send us an inquiry for OTHER MATERIALS OR DIMENSIONS and possible discounts in large quantityprocurement.
| Product description | MOQ |
Unit Price |
| BN99 Rod (dia. 0.25"x L. 6") | 10 ea | $35/ea |
| BN99 Rod (dia. 0.5"x L. 12") | 5 ea | $95/ea |
| BN99 Rod (dia. 1"x L. 12") | 2 ea | $195/ea |
| BN99 Rod (dia. 1.5"x L. 12") | 1 ea |
$390/ea |
| BN99 Rod (dia. 2"x L. 12") | 1 ea | $700/ea |
| BN99 Rod (dia. 3"x L. 12") | 1 ea | $1400/ea |
| BN99 Rod (dia. 4"x L. 12") | 1 ea | $2700/ea |
| BN99 Rod (dia. 2"x L. 6") | 1 ea | $350/ea |
| BN99 Rod (dia. 3"x L. 6") | 1 ea | $790/ea |
| BN99 Rod (dia. 4"x L. 6") | 1 ea | $1310/ea |
Available boron nitride materials for our BN rods
As a supplier of special advanced ceramic materials, QSAM is working together with researching institutions to produce a series of boron nitride material. Except for the pure boron nitride BN99, we also deliver composite boron nitride material with silicon carbide, calcium borate, aluminum nitride and zirconia, to fulfill various of demand for the customers. Our regular pure BN99 boron nitride material balnaced the purity and srength of the material and become the most popular BN material in the market.
BN99 Rods Specifications
|
Product |
BN99boron nitride |
|
|
Appearance |
White |
|
|
Boron Nitride Content |
>99% |
|
|
Crystalline |
hexagonal |
|
|
Mechanical Properties |
// |
T |
|
Bending Strength MPa |
35 |
28 |
|
Compressive Strength MPa |
85 |
72 |
|
Young Modulus GPa |
21 |
70 |
|
Density |
2.0 g/cm3 |
|
|
Porosity |
6.8% |
|
|
Hardness ~Knoop |
11 kg/mm2 |
|
|
Thermal Conductivity |
40W/mK |
|
|
Thermal Expansion RT |
1.4 10-6/K |
0.7 10-6/K |
|
Thermal Expansion 1000~1600K |
0.9 10-6/K |
0.6 10-6/K |
|
Thermal Expansion 1600~1900K |
0.7 10-6/K |
0.7 10-6/K |
|
Dielectric Constant |
4.0 |
|
|
Dielectric Strength |
79KV/mm |
|
|
Electrical Resistance RT |
>1014ohm cm |
|
|
Chemical Composition |
Na2O 0.08% Al2O3 0.04% SiO2 0.03% CaO 0.48% BN 99.3% |
|
Common properties and advantage of boron nitride (compared with the other ceramic materials)
>Low wetability to molten metal>Relatively high thermal conductivity with low thermal expansion
>Relatively high thermal shock resistance
>Extremely high working temperature with proper inert gas protection (>3000C has been recorded).
Other boron nitride materials and their specifications.
|
BN99 (Data Sheet) |
>99% Pure boron nitride material |
|
BN-SiC (Data Sheet) |
SiC enhanced boron nitride |
|
BN-AlN (Data Sheet) |
Aluminum Nitride enhanced BN |
|
TPBN (Data Sheet) |
Thermal purified high purity BN |
|
ZCBN (Data Sheet) |
Zirconia enhanced BN |
|
PBN (Data Sheet) |
Pyrolytic boron nitride/CVD boron nitride |

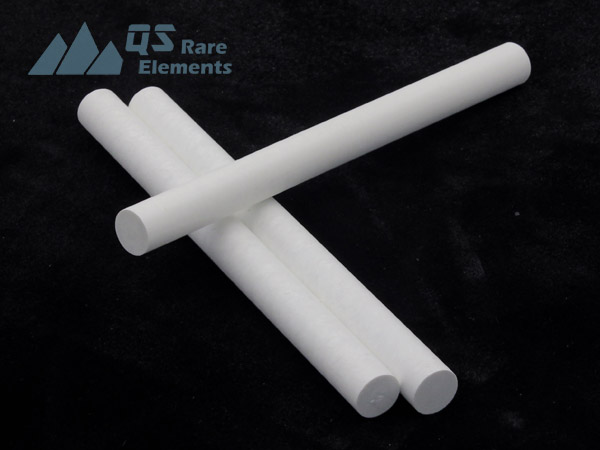

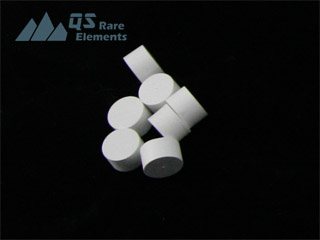

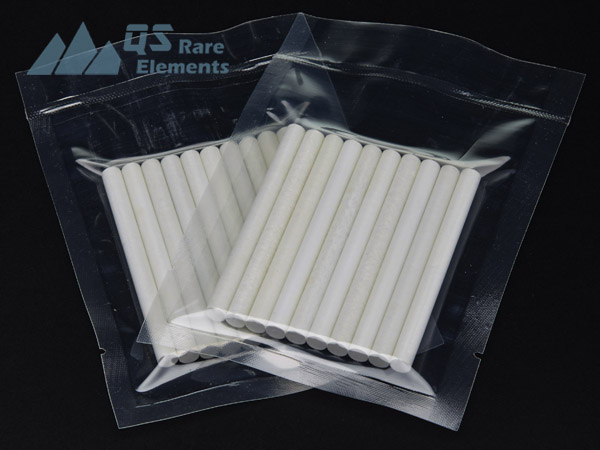

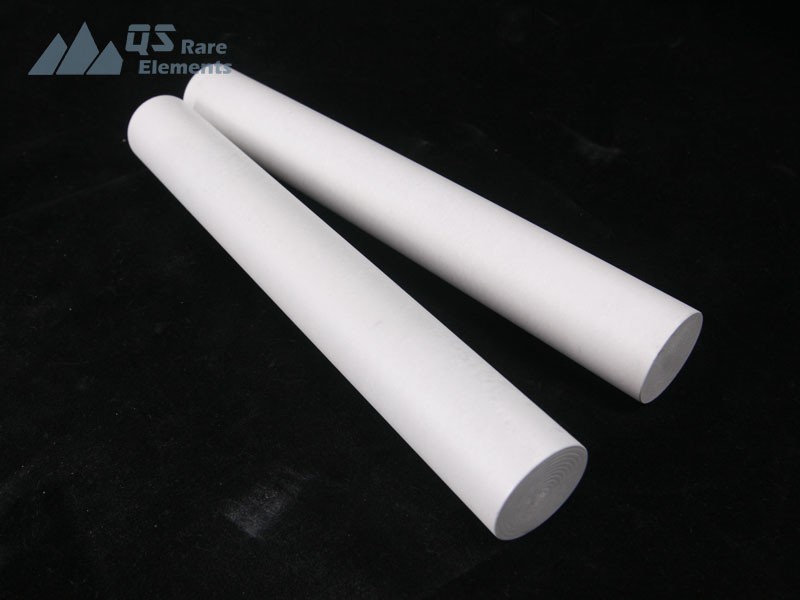

Pics of our boron nitride rods rods
Our boron nitride rods
High purity boron nitride rods could withstand higher temperature in vacuum than lower purity and composite boron nitride products. However, the composite materials generally enhanced mechanical properties such as bending strength, and the high temperature performance in air.
Due to the low wetability with metals, boron nitride rod is an ideal material for metal melting works, especially for high purity material metal in vacuum.
As a supplier of solid advanced ceramic materials, QS Advanced Materials could custom make all kinds of rods and other products in about 2 weeks with $200 MOQ. Typical boron nitride rods are smaller than 12" dia x 15" length due to the limitation of our equipment. Other form of boron nitride machined products could be available with drawings.
About other boron nitride brands
Hexagonal Boron Nitride (h-BN) has a hardness of about 4, making it a machinable material. HBN/HBR/HBT originally referred to product codes for other manufacturers and denoted boric oxide or calcium-enhanced boron nitride materials, respectively. QSAM also provides equivalent boron nitride rods with similar performance to HBN, HBT and HBR. While calcium (or zirconium) enhanced HBR (or ZSBN) is the most common composite boron nitride material, we also produce high purity version TPBN (equivalent to HBT) and a range of other composite boron nitrides, such as AlN-BN and SiC-BN.
