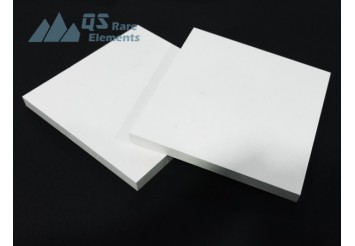

Boron Nitride Sheet | hBN Sheet
Material: BN99, BN60, ZCBN, BN-AlN, HBN
Length: 10~400mm
Thickness: >2mm
Typical Lead Time: 2~3weeks
Click here for specification of our TPBN boron nitride
- Product Details
Dimension and cost estimation of boron nitride sheets
Due to the limit of hot pressed boron nitride raw material, please notice our boron nitride sheet has limits on dimensions. Sheet Length<16" Sheet thickness >1mm
*Enhanced composite boron nitride sheets are usually available within 12"x12"x6".
To obtain a rapid cost estimation of your custom-designed boron nitride sheets or other simple shapes, please utilize the equations presented below.
Price = Unit price x L. x W. x H.
*Current reference unit price for BN99 grade pure boron nitride: $34.40/inch3 ($2.10/cc)
Dimension and price of our regular size boron nitride sheets
| Product description | MOQ | Unit Price |
| BN99 Sheet (2"x4"x0.5") | 6 ea | $90 |
| BN99 Sheet(4"x4"x0.5") | 2 ea | $130 |
| BN99 Sheet (8"x4"x0.5") | 2 ea | $260 |
| BN99 Sheet(12"x4"x0.5") | 1 ea | $390 |
| BN99 Sheet (8"x8"x0.5") | 1 ea | $510 |
| BN99 Sheet(12"x8"x0.5") | 1 ea | $768 |
| BN99 Sheet(12"x12"x0.5") | 1 ea | $1150 |
| BN99 Sheet (2"x4"x1") | 4 ea | $130 |
| BN99 Sheet (4"x4"x1") | 2 ea | $260 |
| BN99 Sheet (8"x4"x1") | 1 ea | $515 |
| BN99 Sheet (12"x4"x1") | 1 ea | $765 |
| BN99 Sheet(8"x8"x1") | 1 ea | $1010 |
| BN99 Sheet(12"x8"x1") | 1 ea | $1430 |
| BN99 Sheet (12"x12"x1") | 1 ea | $2105 |
| BN99 Sheet (4"x4"x2") | 1 ea | $515 |
| BN99 Sheet (8"x4"x2") | 1 ea | $1020 |
| BN99 Sheet(12"x4"x2") | 1 ea | $1530 |
| BN99 Sheet(8"x8"x2") | 1 ea | $1960 |
| BN99 Sheet (12"x8"x2") | 1 ea | $2980 |
| BN99 Sheet (12"x12"x2") | 1 ea | $4200 |

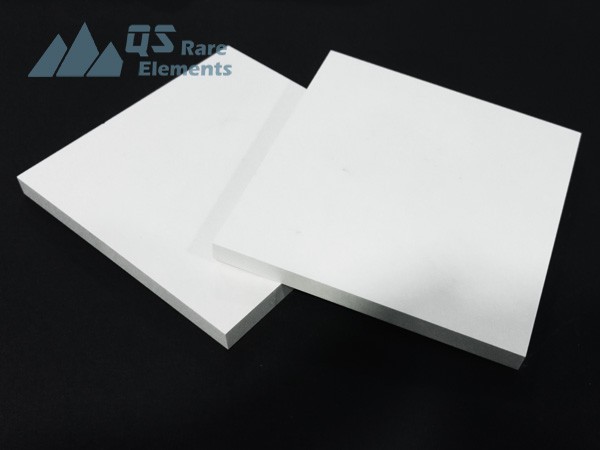

Photos of our boron nitride sheets
Available boron nitride materials
|
BN99 (Data Sheet) |
>99% Pure boron nitride material |
|
BN-SiC (Data Sheet) |
SiC enhanced boron nitride |
|
BN-AlN (Data Sheet) |
Aluminum Nitride enhanced BN |
|
ZCBN (Data Sheet) |
Zirconia enhanced BN |
|
PBN (Data Sheet) |
Pyrolytic boron nitride (high purity, not hot pressed) |
Boron nitride sheet introduction
QS Advanced Materials (QSAM) provides hot pressed boron nitride (hBN) made by sintering boron nitride powder/flake into a solid material. This produces a material with low wettability for molten metals and some salts. Boron nitride works as the premier high-temperature electrical insulator, handling over 2000°C in a protective atmosphere. We have tested our BN99 grade to operate smoothly at 3500°C gas flow in an inert gas, although long-term use should remain under 2200°C based on survival tests. In a vacuum, it decomposes before melting at 1900°C. With these exceptional properties, boron nitride serves many applications in PVD coatings, high-temperature furnace systems, and semiconductor manufacturing.
Additionally, our machinable boron nitride ceramic allows custom machining into shapes, if the raw material is large enough. Since the BN solid raw material price is high (> $20/in3), customers can estimate pricing for products like sheets based on the amount of BN solid required. We can machine simple shapes like plates, tubes, rods, and disks. Complex geometries are also possible depending on specifications.
With its excellent thermal and electrical insulation even at extreme temperatures, boron nitride ceramic is perfect for high-heat applications needing temperature resistance far surpassing traditional materials. Contact QSAM to learn more about our high-quality hot pressed boron nitride. We offer the right boron nitride material solution for your specific application requirements.
QSAM supplies custom made boron nitride sheets and other machined products in about 2 weeks with $200 MOQ. We are proud to announce that QSAM can provide the largest commercially available boron nitride sheet, with the ability to produce any sheet up to 16" x 16" x 8". We maintain a large inventory of hot press sintered boron nitride and can readily cut it into the desired sheet sizes, enabling rapid delivery to our customers. We also gladly accept custom processing based your drawings. Please click
to upload your drawing and request a quote!
Hot Pressed BN Sheet Packaging
As a ceramic material, boron nitride sheets are quite fragile in a lot of cases. Our BN sheets are usually hold in plastic bags by vacuum, and protect with heavy foam.
