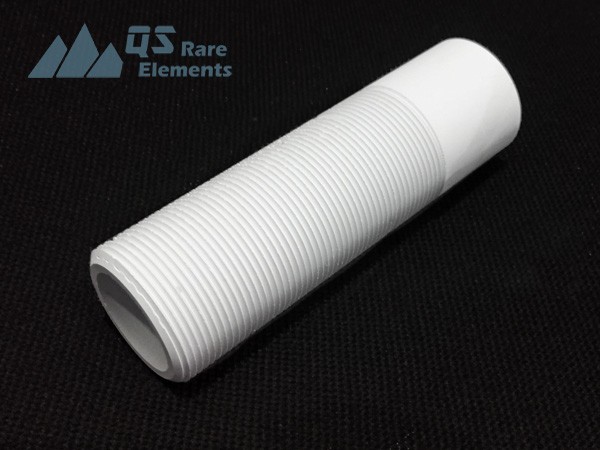

Boron Nitride Shields
Material Brand: BN99, HBT, HBR, BIN77, ZCBN
Purity: 99.5% (BN99)
Additive: <0.5 wt% (BN99, TPBN)
Available max. size: 16" x16" x8"
- Product Details
Boron Nitride Ceramic Material
Boron nitride ceramic is renowned for its exceptional high-temperature performance. With a melting point of approximately 3000°C, it exhibits excellent thermal stability and retains its structural integrity even under extreme heat conditions. This makes it a preferred material in applications requiring thermal insulation, such as in crucibles, furnace linings, and thermal barrier coatings. Furthermore, boron nitride ceramic maintains its mechanical strength and electrical insulation properties at elevated temperatures, making it an ideal choice for various high-temperature environments and industries, including aerospace, electronics, and metallurgy. Overall, the high-temperature capabilities of boron nitride ceramic make it a versatile and reliable material for demanding thermal applications.
Composite Materials available for BN Shields
In addition to pure boron nitride, QSAM has also developed a variety of BN based composite materials. The composite of boron nitride and aluminum nitride AlN-BN has higher much mechanical strength and higher thermal conductivity than pure boron nitride. Although BN components made by these composite materials are more expensive and difficult to process, their service life is significantly longer in a lot of circumstance.
List of all boron nitride material for BNShields
|
BN99 (Data Sheet) |
>99% Pure boron nitride material |
|
BN-SiC (Data Sheet) |
SiC enhanced boron nitride |
|
BN-AlN (Data Sheet) |
Aluminum Nitride enhanced BN |
|
ZCBN (Data Sheet) |
Zirconia enhanced BN |
|
PBN (Data Sheet) |
Pyrolytic boron nitride (high purity, not hot pressed) |
Because boron nitride is a machinable ceramic material, we can make it according to the drawings in about 2 weeks. Please click inquiry to send us message and upload a drawing if necessary.
BN Shields Packaging

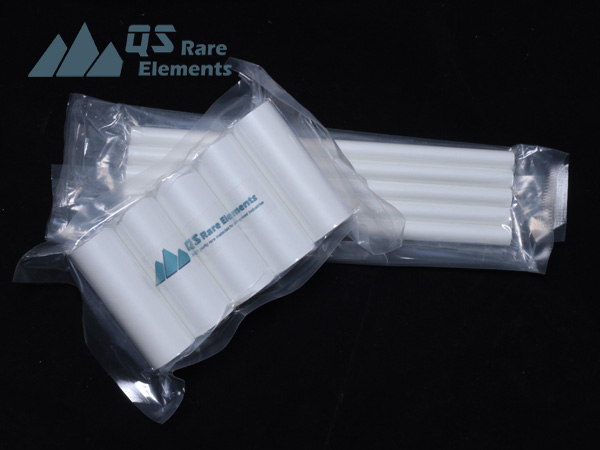

As a ceramic material, boron nitride is quite fragile in a lot of cases. The BNshieldsare usually hold in plastic bags by vacuum, and protect with heavy foam.
