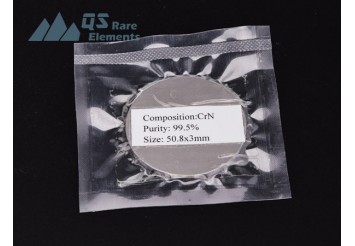

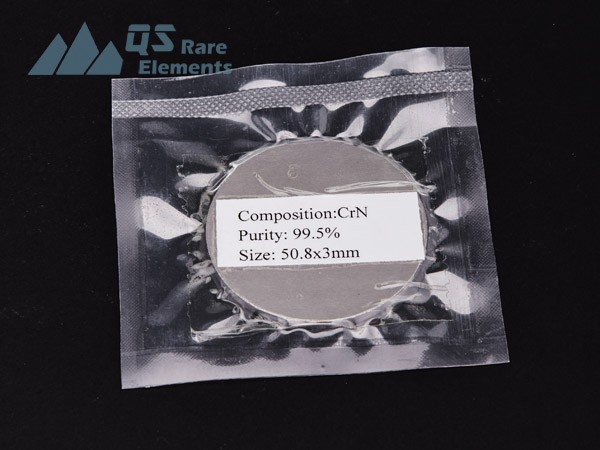

Chromium Nitride (CrN) Sputtering Targets
Composition:Chromium Nitride (CrN)
Catalog No.:DPND24ST
Purity:99.5% ~ 99.9%
Typical Lead Time:4 weeks
Ref. Price:$456.4 (2" Dia. x 1/8")
- Product Details
About chromium nitride sputter targets
Nitride is a binary compound formed by nitrogen and an element with less electronegativity than it.
Chromium nitride actively forms by combining chromium and nitrogen around 800°C. It exhibits high hardness and corrosion resistance. Specifically, these traits produce an excellent material for enhancing mechanical component wear and corrosion resistance.
Moreover, bombardment of a chromium nitride sputter target with heavy ions yields coatings. These coatings can improve mechanical part performance. Additionally, chromium nitride coatings provide attractive colors, commonly used for decoration.
One key feature of chromium nitride involves stability at high temperatures. Specifically, it withstands oxidation and thermal expansion in hot environments. Furthermore, chromium nitride maintains function and structure integrity in heat. As a result, applications like high-temperature coatings and heat-resistant parts show potential. In summary, the compound’s qualities benefit mechanics, optics, and high-temperature use through specialized sputtering deposition.
QSAM's CrN sputter targets
QSAM is a premier supplier of sputter targets and advanced materials. Our CrN sputter targets are commonly fabricated using hot pressing techniques. This sintering method yields targets with high density. At QSAM, we utilize hot pressing to manufacture nitride sputter targets in various sizes, including chromium nitride. Furthermore, indium bonding to simple discs or customized backing plates is a recommended option for CrN targets. QSAM has the capability to synthesize and process multi-component materials like CrN. Please contact us to inquire about educational discounts as well as price quotes for non-standard CrN sputter target sizes and shapes. Our applications laboratory is equipped to support development with specialty sputtering targets.
CrN Properties
| Coumpound Name | Chromium nitride |
| CAS No. | 24094-93-7 |
| Molecular Weight | 65.94 |
| Melting Point | 1770C |
| Theoretical Density | 6.14 g/cc |
CrN Sputter Target Packaging
As Chromium Nitride is a quite brittle ceramic material, we shall pack it in vacuum sealed plastic bags and protect with bubble bag or foam.
Typical documents along with the CrN sputter targets are, Chemical analytical report (COA) ，Packing list
