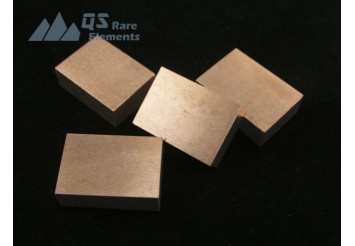

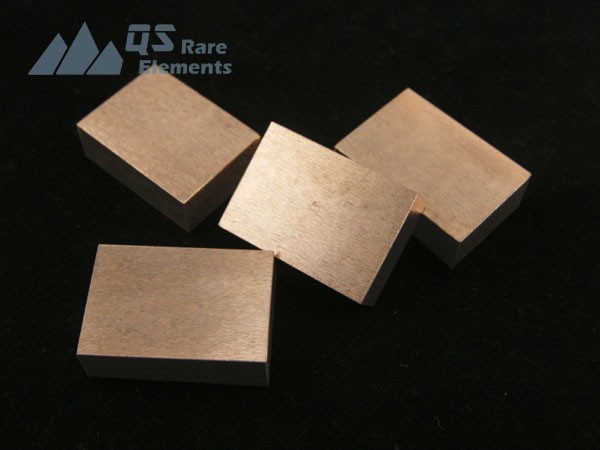

Copper Tungsten(Cu-W)Ingot
Composition: Copper, Tungsten(Cu,W)
Catalog No.: RF7429-Ingot
Material purity: 99.95%
Typical lead time: 3 weeks
- Product Details
Tungsten copper ingot introduction
Copper tungsten is a pseudo-alloy that combines the advantageous properties of copper and tungsten. Its excellent electrical and thermal conductivity, high melting point, and good mechanical properties make it a versatile material used in various industries.
The properties of copper tungsten can be tailored by adjusting the composition. The tungsten content in the alloy affects its hardness, electrical conductivity, and thermal conductivity. Higher tungsten content increases hardness and wear resistance but decreases electrical and thermal conductivity. Conversely, higher copper content enhances electrical and thermal conductivity but reduces hardness.
The fabrication of copper tungsten components is possible through various processes such as machining, grinding, and EDM. Machining copper tungsten can be challenging due to its high hardness and abrasiveness. However, with appropriate tooling and techniques, precise shapes and dimensions can be achieved.
QSAMs copper tungsten products
As copper and tungsten shall not really melt together, Cu-W is produced by powder metallurgy. Due to the high electric conductivity and relatively high max. working temperature of this material, copper-Tungsten ingot is usually used in electric component, such as electrodes. QS Advanced Materials could supply both copper tungsten and silver tungsten in many shapes. As the place of where to buy tungsten copper material, QSAM is always glad to receive your inquiry and always welcome custom design with drawing.
Common composition of copper-Tungsten alloy
|
Composition wt. % |
Density g/cm3 |
Hardness HB Kgf/mm2 |
Resistivity micro Ome*cm |
IACS% |
Bending strengthMpa |
|
W50/Cu50 |
11.85 |
115 |
3.2 |
54 |
- |
|
W55/Cu45 |
12.3 |
125 |
3.5 |
49 |
- |
|
W60/Cu40 |
12.75 |
140 |
3.7 |
47 |
- |
|
W65/Cu35 |
13.3 |
155 |
3.9 |
44 |
- |
|
W70/Cu30 |
13.8 |
175 |
4.1 |
42 |
790 |
|
W75/Cu25 |
14.5 |
195 |
4.5 |
38 |
885 |
|
W80/Cu20 |
15.15 |
220 |
5 |
34 |
980 |
|
W85/Cu15 |
15.9 |
240 |
5.7 |
30 |
1080 |
|
W90/Cu10 |
16.75 |
260 |
6.5 |
27 |
1160 |
Tungsten copper packaging
Tungsten is stable in air and packed without vacuum seal, unless requested. Wooden crater is applied when the cargo is over weight.
*Mill report available for our tungsten ingot.
