Custom Boron Nitride Crucibles
Boron nitride crucible materials
| BN99 boron nitride |
| TPBN thermal purified high purity boron nitride |
| AlN-BN Composite boron nitride |
| ZCBN Composite boron nitride |
Catalog No.:BN-CRM MOQ: $250
- Product Details

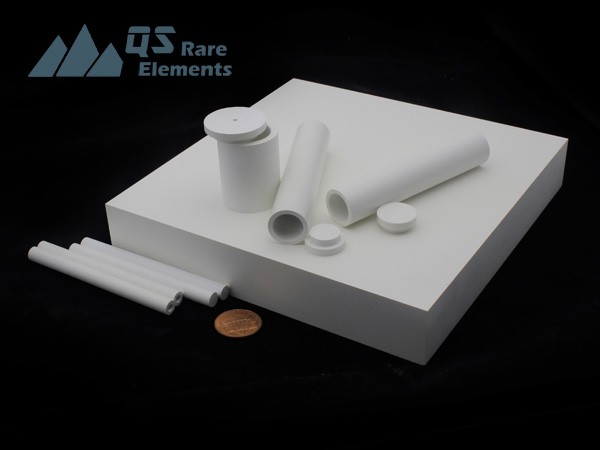

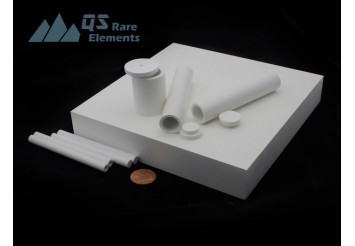

Our boron nitride (BN) crucibles

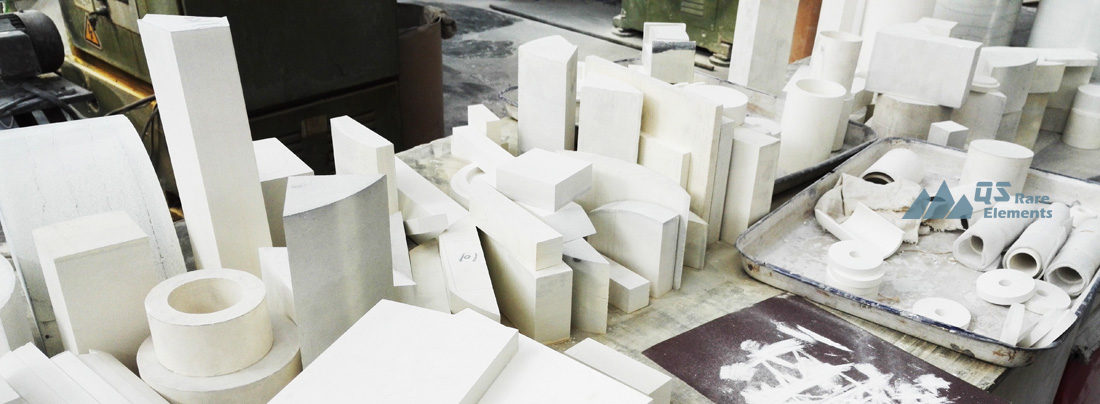

QS Advanced Materials supplies shapes of boron nitride as raw materials and custom make all kinds of boron nitride crucibles. We are capable to machine simple designed crucibles in 2 weeks with competitive price ($300 MOQ).
Boron nitride (BN)crucible design
Typical boron nitride crucible set has a crucible body and a staged crucible lid (lid with holes on it to balance pressure is available). Customers could click Inquiry ,upload your drawing and request a quote for your custom made boron nitride crucibles!
Cost estimation for custom boron nitride (BN)crucibles
For a quick estimation of price of your custom designed crucible and other simple BN shapes, pleas use the equations below
Rectangular shape:
Price = Unit price xmax.L.xmax.W.xmax.H.
Cylinder shape:
Price = Unit price x(max.OD.)2xmax.H.
Current unit price for BN99 grade pure BN materials: $34.40/inch3 ($2.10/cc)
Dimension limitations of our boron nitride (BN) crucible
Due to the limit of hot pressed boron nitride raw material, please notice our boron nitride crucibles has limits on dimensions.
|
Boron nitride crucible height |
<12" |
|
Boron nitride crucible OD. |
<12" |
|
Boron nitride crucible wall thickness |
>2mm |
List of regular boron nitride (BN) crucibles
Please click "Price" for more details
Cylindrical Boron Nitride Crucibles
|
Item No. |
Crucible ID (mm) |
Crucible H (mm) |
Wall Thickness |
Volume (cc) |
Price |
MOQ |
|
BN-CCR6090 boron nitride crucible |
60 |
90 |
5 |
250 |
1 ea |
|
|
BN-CCR4570 boron nitride crucible |
45 |
70 |
4 |
100 |
1 ea |
|
|
BN-CCR3555 boron nitride crucible |
35 |
55 |
3 |
50 |
2 ea |
|
|
BN-CCR2540 boron nitride crucible |
25 |
40 |
3 |
20 |
4 ea |
|
|
BN-CCR1625 boron nitride crucible |
16 |
25 |
3 |
5 |
6 ea |
|
|
BN-CCR20100 boron nitride crucible |
20 |
100 |
3 |
30 |
4 ea |
|
|
BN-CCR1375 boron nitride crucible |
13 |
75 |
3 |
10 |
6 ea |
|
|
BN-CCR7560 boron nitride crucible |
75 |
60 |
5 |
250 |
1 ea |
|
|
BN-CCR5545 boron nitride crucible |
55 |
45 |
4 |
100 |
2 ea |
|
|
BN-CCR4535 boron nitride crucible |
45 |
35 |
3 |
50 |
4 ea |
|
|
BN-CCR3525 boron nitride crucible |
35 |
25 |
3 |
20 |
6 ea |

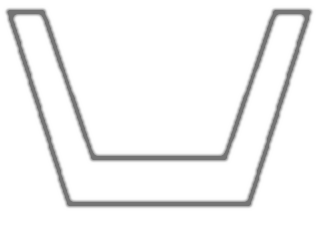

Tapered Cylindrical Boron Nitride Crucibles
| Item No. | Crucible ID (mm) | Crucible H (mm) | Wall Thickness | Volume (cc) | Price $ | MOQ |
| BN-TCR68115 boron nitride crucibles | 68 | 115 | 5 | 250 | $900.00 | 1 ea |
| BN-TCR5080 boron nitride crucibles | 50 | 80 | 4 | 100 | $390.00 | 1 ea |
| BN-TCR4065 boron nitride crucibles | 40 | 65 | 3 | 50 | $198.00 | 1 ea |
| BN-TCR3050 boron nitride crucibles | 30 | 50 | 3 | 20 | $95.00 | 2 ea |
| BN-TCR1930 boron nitride crucibles | 19 | 30 | 3 | 5 | $35.00 | 6 ea |
| BN-TCR8050 boron nitride crucibles | 80 | 50 | 4 | 200 | $540.00 | 1 ea |
| BN-TCR6440 boron nitride crucibles | 64 | 40 | 3 | 100 | $295.00 | 1 ea |
| BN-TCR5032 boron nitride crucibles | 50 | 32 | 3 | 50 | $155.00 | 2 ea |
| BN-TCR4025 boron nitride crucibles | 40 | 25 | 3 | 25 | $95.00 | 4 ea |
| BN-TCR3220 boron nitride crucibles | 32 | 20 | 3 | 10 | $50.00 | 4 ea |

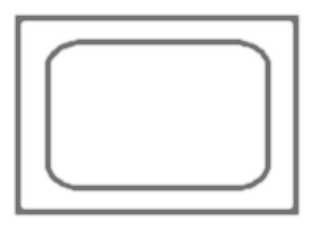

Rectangle Boron Nitride Crucibles
| Item No. | Length (mm) | Width (mm) | Height (mm) | Wall Thickness | Price $ | MOQ |
| BN-RCR2025 boron nitride crucibles | 25 | 20 | 10 | 3 | $38.00 | 6 ea |
| BN-RCR3545 boron nitride crucibles | 45 | 35 | 20 | 3 | $72.00 | 4 ea |
| BN-RCR4055 boron nitride crucibles | 55 | 40 | 25 | 3 | $125.00 | 2 ea |
| BN-RCR6060 boron nitride crucibles | 60 | 60 | 30 | 4 | $175.00 | 2 ea |
| BN-RCR9090 boron nitride crucibles | 90 | 90 | 40 | 5 | $460.00 | 1 ea |
| BN-RCR120 boron nitride crucibles | 120 | 120 | 55 | 5 | $1,050.00 | 1 ea |
About brands of boron nitride (BN) crucibles
* HBN is originally a product code for Momentive Performance Materials and represents for the calcium enhanced boron nitride material. QSRE is also providing calcium borate enhanced boron nitride with similar performance compared with HBN. Although calcium (or zirconium) enhanced HBN (or ZSBN) are the most common composite boron nitride material, we also produce a series of other composite boron nitride, such as AlN-BN, SiC-BN
Check the Product Specification for our pure boron nitride BN99 and zirconia composite material ZCBN
