Zirconia Ceramic: Unique Properties and the Role of Stabilization
Introduction
In the realm of advanced ceramics, zirconia ceramic has gained significant attention due to its exceptional properties and wide-ranging applications. This article aims to provide an insightful introduction to zirconia ceramic, shedding light on its unique characteristics, the need for stabilization, and the significance of yttria-stabilized zirconia.
Understanding Zirconia Ceramic
Zirconia, also known as zirconium dioxide (ZrO2), is a versatile ceramic material renowned for its remarkable mechanical strength, excellent thermal resistance, and exceptional chemical stability. These properties make it a preferred choice in various industries, including aerospace, automotive, electronics, and biomedical.
The Need for Stabilization
Pure zirconia possesses a unique crystal structure known as monoclinic, which exhibits limited mechanical properties and poor resistance to high-temperature environments. However, through the process of stabilization, zirconia can be transformed into a more desirable form with improved properties.
Stabilized Zirconia
Stabilization of zirconia is achieved by introducing specific dopants or additives. Among various stabilizers, yttria (Y2O3) is the most commonly used, hence the term "yttria-stabilized zirconia" (YSZ). The addition of yttria alters the crystal structure of zirconia, resulting in the formation of a solid solution that exhibits enhanced properties, such as higher mechanical strength, improved fracture toughness, and excellent resistance to thermal shocks.
The Role of Yttria
Yttria acts as a stabilizing agent by substituting zirconium ions in the crystal lattice of zirconia. This substitution disturbs the alignment of zirconia molecules, leading to the stabilization of the cubic phase at room temperature. The cubic phase is highly favorable due to its exceptional properties, including enhanced ionic conductivity and oxygen ion diffusion, making it suitable for numerous applications.
Applications of Yttria-Stabilized Zirconia
Mechanical Parts: YSZ is widely used in aerospace and automotive industries for components subjected to high temperatures, such as gas turbine blades, engine components, and exhaust systems. Its high thermal shock resistance and mechanical strength make it an ideal candidate for these demanding applications.
Material processing: Due to its high hardness, wear resistance and chemical stability, YSZ is frequently used as grinding media to mix or grind down other materials. YSZ made grinding jar is considered the ideal grinding jar in most of cases, when cost is acceptable. And it is also used to make crucibles to melt metal and other materials with its high temperature resistance and chemical inertness. Check here for moreinformation about YSZproducts applied in material processing.

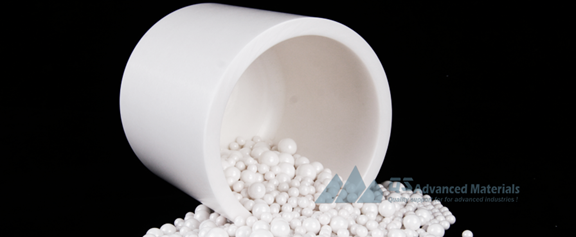

YSZ Grinding jar with grinding balls
Electronics: YSZ finds applications in the field of electronics, particularly as a solid electrolyte in fuel cells and oxygen sensors. Its excellent ionic conductivity allows for efficient ion transport, enabling the smooth operation of these devices.
Biomedical: YSZ has also found its place in the biomedical field. It is used in dental implants and prosthetics due to its biocompatibility and resistance to corrosion. YSZ's ability to bond with bone tissue makes it an excellent material for providing structural support and longevity to dental restorations.
Conclusion
Zirconia ceramic, when appropriately stabilized, exhibits exceptional properties that make it highly desirable for a wide range of applications. Yttria-stabilized zirconia has emerged as a game-changer, enhancing zirconia's mechanical strength, thermal resistance, and chemical stability. With its vast potential in aerospace, automotive, electronics, and biomedical industries, yttria-stabilized zirconia continues to play a crucial role in shaping advanced materials for the future.
