Metallic Materials for 3D Printing Applications

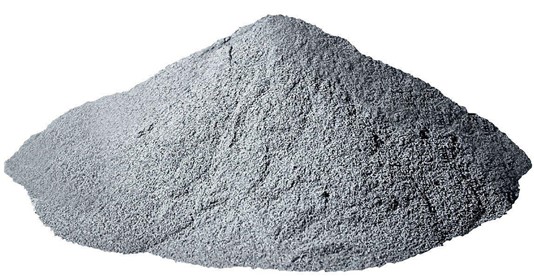

Manufacturers actively crush metals into fine powder materials to enable 3D printing of metallic components. This additive manufacturing approach builds up parts layer-by-layer, rather than traditional subtractive methods. Specifically, the metal powder type and 3D printing process directly determine the final part's properties and performance. For example, stainless steel alloys enable high durability parts while titanium provides strength with lower weight. Additionally, processes like selective laser sintering fuse powders utilizing precision laser heating. In summary, optimized metal powders empower diverse 3D printing applications across aerospace, medical, and automotive industries. Matching material and process unlocks customized mechanical properties and shapes using this transformative fabrication method.
What is the role of powders in 3D printing processes?
Modern 3D printers utilize metallic powders rather than filament feedstocks, enabling broader material capabilities. Specifically, fine powders of steel, copper, titanium and other metals flow easily through print heads for precise layer-by-layer deposition. Additionally, optimized thermal inputs melt the metallic particles just enough for bonding between layers while retaining desired shapes. In contrast, filaments restrict the printable materials palette. Crucially, powders facilitate blending of alloys and grades to tune mechanical properties. For example, engineers customize stiffness, strength, and thermal behavior based on part function. In summary, metal powders unlock more complex geometries and tailored performance in additively manufactured components across automotive, medical, and aerospace applications. Their free-flowing nature empowers the fabrication of end-use metal parts previously unachievable by 3D printing processes.
Powder-based 3D printers actively utilize binding agents to join material layers together. Specifically, a roller spreads a thin layer of metal powder onto the print platform. Then, the printhead precisely deposits binder droplets to selectively solidify regions of the powder bed. This binds the layer according to the part geometry. By repeating for successive layers, the process additively constructs complete 3D models. For example, stainless steel components with intricate internal features become achievable. Additionally, engineers optimize binder properties and powder metallurgy to tailor final part density, accuracy, and aesthetics. In summary, selective binding of powder layers enables complex metal parts unattainable through conventional subtractive techniques. This binder-based approach provides exceptional control over localized material composition and structure.
Metal Powder Varieties and Specifications for 3D Printing
Metal powders that are appropriate for use in the 3D printing process must have the following characteristics:
l high purity
l High flowability
l Good sphericity
l Very low oxygen content
l High packing density
l Narrow particle size distribution
Today's 3D printers actively utilize various metal powders to enable diverse applications and properties. For example, titanium and aluminum alloys provide strength with lower weight, ideal for aerospace components. Meanwhile, stainless steel, cobalt-chromium, and iron facilitate high durability and wear resistance needed in medical implants and tooling. Additionally, precious metals like gold and silver allow fabrication of jewelry and electronics with high conductivity. Looking ahead, copper and nickel powders will unlock heat exchange parts boasting thermal stability. In summary, a widening range of metal powders is empowering custom-tailored 3D printing across industries. By matching material capabilities to part functions, additive manufacturing delivers innovative new geometries and performances.
Methods for Manufacturing Metal Powders
Producing high-quality metal powders is essential for additive manufacturing and powder metallurgy. Engineers use various methods to actively generate metallic powders with unique shapes and sizes. Specifically, the reduction method extracts metals from ores while electrolysis deposits dissolved metals onto cathodes. Alternatively, the carbonyl process decomposes metal-carbonyl compounds. Additionally, grinding mills mechanically crush bulk metals into fine powders. However, gas atomization is the preferred method today. It uses air jets to atomize molten metal streams into uniformly spherical powders ideal for 3D printing. In summary, optimized powder production unlocks customized microstructures and alloy compositions to meet diverse industry needs. Matching process techniques to material functionality remains crucial for driving innovation.
The four methods most widely used in producing metal powders are solid-state reduction, electrolysis, chemical, and atomization methods.
While manufacturers leverage electrolytic and reduction processes to generate pure elemental powders, these methods struggle to produce alloys. Crucially, alloy powders enable custom mechanical properties by blending multiple metals. Fortunately, gas atomization actively overcomes this limitation through its flexible production capabilities. It uses air jets to atomize molten metal streams into alloy powder particles with adjustable composition. Consequently, gas atomization is the dominant technique today for manufacturing blended powders optimized for additive manufacturing. Looking ahead, innovations like water atomization will provide finer control over powder shape and microstructure. In summary, advanced atomization processes actively transform the 3D printing landscape by facilitating fully customized alloy powders.
Producing Metal Powders via Solid-State Reduction
The solid-state reduction process starts by actively crushing ore and thoroughly mixing it with carbon powder. Next, the mixture flows continuously through a heated furnace, which reduces the oxygen to purify the metal. This yields a porous cake containing spongy metal that then gets crushed into a powder. Engineers actively sieve this powder to remove non-metallic contaminants before final collection. Notably, there is no refining step, so raw material purity directly determines final powder quality. Overall, this cost-effective approach suits high-volume production of commodity powders. However, limitations in achievable purity make it less ideal for specialized alloys and high-value applications. Looking ahead, innovations in real-time composition monitoring aim to enable tighter purity control in solid-state reduction.
Producing Metal Powders through Electrolysis
Electrolysis presents a versatile pathway for manufacturing high-purity metal powders. Engineers actively tailor parameters like electrolyte composition, temperature, concentration, and current density to deposit metals onto cathodes with optimized morphologies. For example, dendritic, spongy, or powdery formations become achievable. After deposition, additional processing like washing, drying, annealing, and crushing helps refine particle sizes and shapes. Notably, electrolytic powders boast exceptional purity levels unattainable through other methods. However, high energy demands generally limit this technique to specialized applications like high-conductivity copper powder production. Looking ahead, more efficient cell designs and novel electrolytes could potentially expand the capabilities and cost-effectiveness of electrolytic powder manufacturing.
Producing Metal Powders through Chemical Processes
Chemical techniques actively produce metal powders through oxide reduction, solution precipitation, and thermal decomposition of precursors. For example, reducing metal oxides with hydrogen yields ultra-pure metallic powders. Additionally, controlled precipitation from metal salt solutions generates uniform particles. In contrast, decomposing organometallic compounds at elevated temperatures offers a direct route to alloyed and composite powders. Notably, chemical methods enable excellent control over powder morphology, composition, and purity. However, variability in chemical properties can require additional post-processing to achieve stable powders. Looking ahead, innovations like sol-gel routes aim to improve flexibility and cost-effectiveness in chemical powder synthesis.
Producing Metal Powders through Atomization
Atomization actively produces fine metal powders by disintegrating molten metal streams into droplets that rapidly solidify into particles. Engineers leverage various atomization techniques to meet different manufacturing needs. For example, gas atomization uses high-velocity gas jets to generate extremely spherical powders ideal for additive manufacturing. Alternatively, water atomization harnesses water's high heat capacity for cost-effective, high-volume powder production. Additionally, centrifugal atomization rotates the melt at high speeds to fling off droplets. Notably, all methods can achieve sub-150 micrometer powder sizes with adjustable morphology. However, gas atomization enables superior flowability and packing density crucial for advanced applications. Looking ahead, novel ultrasonic atomization aims to enhance particle uniformity and process control. Overall, tailored atomization techniques empower powder manufacturers to actively engineer optimized materials across diverse industries.
Producing Metal Powders via Water Atomization
Water atomization, also called vapor atomization, has become the predominant industrial method for metal powder production thanks to its simplicity and scalability. This technique actively uses water's high heat capacity to efficiently fragment molten metal into fine droplets that rapidly solidify into powders. Requiring only basic equipment, water atomization provides a straightforward, cost-effective route to large-volume powder manufacturing. Compared to gas or centrifugal approaches, it consumes far less energy during processing. Looking ahead, innovations like close-coupled atomization aim to enhance particle uniformity and process control. Overall, water atomization's efficiency empowers high-throughput, economical powder fabrication suited for commodities like stainless steel.
The Crucial Role of Metal Powder 3D Printing
Metal powder bed fusion is revolutionizing manufacturing by enabling rapid prototyping and simplified design iteration. Unlike traditional methods, it additive builds parts layer-by-layer directly from 3D model data. Consequently, engineers can actively test designs and quickly modify geometries that are otherwise impossible to produce. Additionally, the process uses only the required powder to construct each part, reducing material waste and costs compared to subtractive techniques. Parts boast exceptional mechanical properties too, thanks to customized alloys and microstructures. Looking ahead, innovations in multi-metal printing, surface finishes, and automation aim to expand capabilities further. Overall, metal powder bed fusion provides transformative flexibility, efficiency, and performance. It empowers manufacturers to actively engineer optimized components for aerospace, medical, and automotive applications. This disruptive technology will likely become the predominant manufacturing approach across many industries.
