Nitride/Nitrate
Nitride ceramics are a class of materials that consist of nitrogen and a metal or metalloid element. They exhibit strong covalent bonding, high melting points, excellent thermal stability, and good mechanical properties. Nitride ceramics find applications in various industries due to their unique properties.
Boron Nitride (BN) ceramics is known for its exceptional thermal conductivity, high electrical resistance, and machinable hardness. It is used in applications such as high-temperature crucibles, insulators, protective tubes. High purity boron nitride could be obtained by high temperature process, as the impurities are evaporized by the heat. The 99.9% grade high purity TPBN is obtained by this process. While 99.99% boron nitride is possible with chemical vapor depostion and it could be used to make high purity boron nitride sputtering target.
Silicon Nitride (Si3N4) possesses high strength, toughness, and excellent thermal shock resistance. It finds applications in cutting tools, bearings, engine components, and turbine blades, where high-temperature and wear resistance are required. Thinfilm coatings of silicon nitride could be made based on high purity Si3N4 sputtering targets, produced by hot pressing technique.
Titanium Nitride (TiN) is recognized for its extreme hardness, low friction, and excellent corrosion resistance. It is extensively used as a wear-resistant coating on cutting tools. Titanium Nitride (TiN) is a highly significant coating material for achieving gold-like decorative purposes due to its distinctive golden color. In recent times, the use of titanium nitride sputtering targets has gained prominence for producing high-quality TiN coatings, serving as a viable alternative to traditional methods like titanium plating and nitriding. These sputtering targets enable the deposition of TiN coatings with excellent adhesion, uniformity, and durability. The resulting TiN coatings find extensive application in industries such as jewelry, architectural hardware, and consumer electronics, where the gold-like appearance is desired, offering an attractive and cost-effective solution.
Aluminum Nitride (AlN) exhibits high thermal conductivity, electrical insulation, and excellent dielectric properties. It is employed in electronic components, heat sinks, substrates for power electronics, and LED packages. AlN sputtering target is applied to creat the thinfilm in manufacturing micro electronics. On the other hand, Aluminum nitride ceramic is also a structural ceramic material, with its top thermal conductivity amoung all the ceramics, aluminum nitride could be used to make substrates, crucibles and some other custom designed parts.
Chromium Nitride (CrN) is valued for its high hardness, low friction, and excellent adhesion. It finds applications as a wear-resistant coating on cutting tools, molds, and decorative finishes.
-
Boron Nitride Machinable Ceramic
Catalog No.:BN-MC
Available Materials: BN99, TPBN, ALNBN, ZCBNMinium order quanity: $24/cub inch(reference only)
Typical Lead Time:1~2 weeks
Click here for specification of our BN99 boron nitride
Click here for the SDS document of SDS of boron nitride bars
-
Pyrolytic Boron Nitride Crucible | PBN crucible
Material:Pyrolytic Boron Nitride /PBN
Production process:CVD
Type:LEC, MBE, VGF, Conical
Purity:>99.99%
Supplier:QSAM
-
Boron Nitride Crucible
Full Name: Pure hot pressed hexagonal boron nitride crucibles
Purity: 99.5% (BN99)
Additive: None
Ref. Price: $395.50/set (2"OD x 3"H BN99)
Click here for specification of our TPBN
-
Nitride Sputtering Targets
TiN, TaN, BN, Si3N4 ...and other sputter targets of nitride compounds.
Catalog No.:DPNDST
Maximum dia. for disc sputter targets: 18"
Price: from $300.00 with domestic shipping included
-
Boron Nitride Plate
Material: BN99, ZCBN, BN-AlN, HBN,BIN77,HBT,TPBN
Length/width: 10~400mm
Typical Lead Time: 2~3weeks
Click here for specification of our TPBN boron nitride
Click here for specification of our BN99 boron nitride
-
Boron Nitride Tubes
Material: BN99, BN60, TPBN, BN-AlN, HBR, ZSBN,
Catalog No.:BN-TB MOQ: $250
Length: 10~400mm ID: >2mm
Typical Lead Time: 2 weeks
-
Rare Earth Ceramic Sputtering Targets
Catalog of ceramic sputtering targets of rare earth elements
Sc, Y, La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tb, Yb, Lu. Their oxides, fluorides...
-
Boron Nitride Target Frames
Material Brand: BN99, TPBN, HBN, AlN-BN, ZCBN
Purity: 99.5% (BN99)
Additive: <0.5 wt% (BN99, TPBN)
Available max. size: 16" x16" x8"
-
Boron Nitride Liners
Material Brand: BN99, TPBN, HBN, AlN-BN, ZCBN
Purity: 99.5% (BN99)
Additive: <0.5 wt% (BN99, TPBN)
Available max. size: 16" x16" x8"
-
Boron Nitride Shields
Material Brand: BN99, HBT, HBR, BIN77, ZCBN
Purity: 99.5% (BN99)
Additive: <0.5 wt% (BN99, TPBN)
Available max. size: 16" x16" x8"
-
Boron Nitride Furnace Components
Material Brand: BN99, TPBN, HBN, AlN-BN, ZCBN
Purity: 99.5% (BN99)
Catalog No.: BN-FC MOQ: $250
Available max. size: 16" x16" x8"
-
Boron Nitride PVD Components
Material Brand: BN99, TPBN, HBN, AlN-BN, ZCBN
Catalog No.:BN-PC
Available max. size: 16" x16" x8" MOQ: $250
-
Boron Nitride Sintering Media
Material Brand: BN99, TPBN, HBN, AlN-BN, ZCBN
Additive: <0.5 wt% (BN99, TPBN)
Catalog No.:BN-SM
MOQ: $250
-
Boron Nitride - Hall effect Thruster Plasma Chamber
Full Name: Boron Nitride - Hall effect Thruster Plasma Chamber
Purity: 99.5% (BN99)
Available max. size: 16" x16" x8"
Catalog No.:BN-HT MOQ: $250
Click here for specification of our BN99 boron nitride
-
Boron Nitride Insulators
Material: BN99, BN60, ZCBN, BN-AlN, HBN
Catalog No.:BN-IT MOQ: $250
ID: >2mm Length:<16"
Typical Lead Time: 2~3weeks
-
Boron Nitride Protective Tubes
Material: BN99, ZCBN, BN-AlN, HBN
Catalog No.:BN-PT MOQ: $250
ID: >2mm Length:<16"
Typical Lead Time: 2~3weeks
-
Boron Nitride Blank
High purity/Enhanced hot pressed hexagonal boron nitride rods
Catalog No.:BN-BK
MOQ: $250
Max. Size: 12" dia. x 16" H
-
Boron Nitride Disc
Material: BN99, ZCBN, BN-AlN, HBN
Diameter: 10~400mm
Thickness: >2mm
Typical Lead Time: 2~3weeks
Click here for specification of our TPBN boron nitride
-

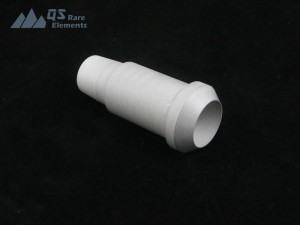

Boron Nitride Nozzle
Hot pressed hexagonal boron nozzles
Material: BN99,ZCBN,ALNBN,BNSIC
Catalog No.:BN-NZ
-
Boron Nitride Rod
High purity hot pressed hexagonal boron nitride rods
Purity: 99.5% (99.9% for TPBN)
Ref. Price: $24/Inch3(rectangular material the rod takes)
Max. Size: 12" dia. x 13" H
Click here for specification of our TPBN
