Breakthrough in Thermoelectric Materials Research: Scholars from Shanghai Achieve High-Performance SnSe Single Crystals
Research Background
As the energy crisis and environmental issues become increasingly serious, the effective conversion and utilization of energy have become a hot topic for researchers around the world. Thermoelectric materials, which can directly convert heat into electricity, have received widespread attention in recent years. In this field, Professor Min Jin and Dr. Ziqi Tang from the College of Materials, Shanghai Dianji University, collaborated with a research team from the Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, and achieved remarkable results.
Research Highlights
Their research results were published in the Materials Research Bulletin journal, entitled "Growth of SnSe single crystal via vertical vapor deposition method and characterization of its thermoelectric performance." This study not only successfully utilized the innovative vertical vapor deposition method to grow high-quality SnSe single crystals, but also demonstrated the excellent thermoelectric performance of these single crystals. In their previous experiments, the scientists used PBN (pyrolytic boron nitride) crucibles, a material with high thermal conductivity and excellent mechanical stability, which provided ideal conditions for the single crystal growth process.
Methodological Innovation
In this research, the researchers carefully designed the experimental scheme and adopted the vertical vapor deposition technique to ensure the effective vaporization and recrystallization of the SnSe material. This aspect is particularly crucial, as it directly affects the quality and performance of the final products.
High-Quality Single Crystals
Through meticulous experimental operations, the research team obtained more than 30 SnSe single crystals with regular shapes, with the largest single crystal size reaching 15×15×10 mm³. These single crystals exhibited a near-stoichiometric Sn:Se ratio and a standard orthorhombic Pnma space group structure at room temperature.
Thermoelectric Performance Analysis
The researchers tested the electrical conductivity of these single crystals and found that it reached the highest value of 39.6 S cm⁻¹near the Pnma-Cmcm phase transition temperature. The Seebeck coefficient even reached a remarkable 566μVK⁻¹at 580K, indicating the great potential of SnSe single crystals as thermoelectric materials at intermediate temperatures.
Crucial Thermal Conductivity Findings
In the thermal conductivity analysis, the SnSe single crystals showed a significant reduction in thermal conductivity near the phase transition point, reaching a minimum of 0.44 Wm⁻¹K⁻¹. This finding is crucial for their application as intermediate-temperature thermoelectric materials.
High Efficiency Performance Index
In terms of thermoelectric efficiency, the ZT value of the SnSe single crystals reached close to 1.0 at 800K, suggesting their promising commercial application prospects.
Key Manufacturing Process
In this study, a PBN crucible with a diameter of 56 mm was used to cover the quartz crucible, providing uniform heating and effectively relieving the stress during the SnSe single crystal growth process, demonstrating the application value of PBN crucibles in advanced scientific research.
Unique Role of PBN Crucibles
The choice of PBN crucibles was due to their excellent thermal stability and chemical inertness at high temperatures, which allowed them to withstand the high-temperature conditions of the vapor deposition method and maintain chemical purity, thereby avoiding the introduction of impurities during the crystal growth process. Additionally, the excellent elasticity of PBN crucibles was crucial for relieving the stress generated during the growth process, contributing to the formation of intact and regularly shaped single crystals.
QSAM Inc., as a leading manufacturer of PBN crucibles in the market, provided high-quality services to the research users. Their expertise in PBN crucible manufacturing and customization enabled the researchers to obtain the most suitable high-quality crucibles, supporting the advancement of their scientific investigations.

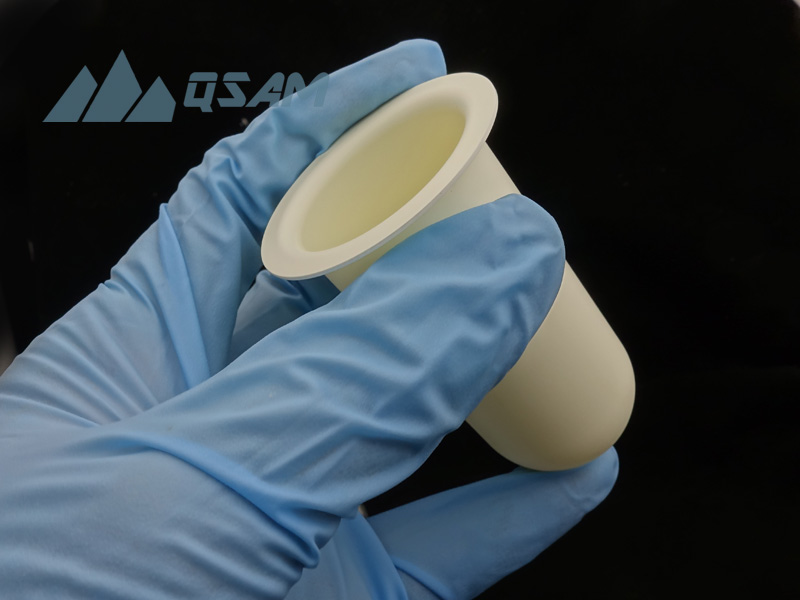

PBN Crucible
Promising Prospects for Thermoelectric Materials
The success of this research not only provides a new technical pathway for the preparation of SnSe single crystals but also provides new theoretical and experimental evidence for the research and application of intermediate-temperature thermoelectric materials. As the potential of thermoelectric materials in energy conversion and temperature control applications is gradually being explored, this breakthrough research will pave the way for future green energy technologies.

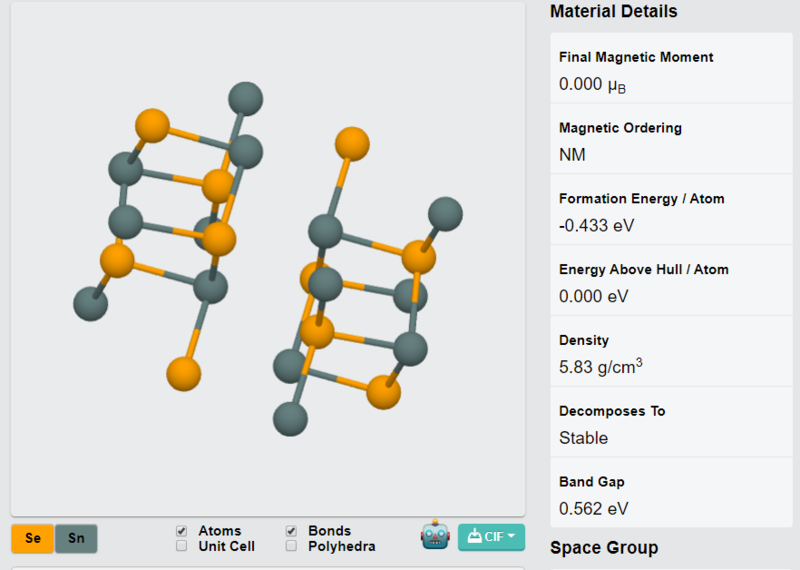

SnSe tin selenide crystal
Research Funding Support
The research work of this project was supported by the Nature Science Foundation of Shanghai, the Shanghai Engineering Research Center of Hot Manufacturing, and the Natural Science Foundation of Shanghai Dianji University. The support from these funding agencies provided a strong foundation for the research team to conduct more in-depth studies.
Conclusion and Outlook
In summary, the research team led by Professor Min Jin and Dr. Ziqi Tang successfully grew SnSe single crystals with high thermoelectric performance using PBN crucibles. This achievement not only demonstrates the effectiveness of the vertical vapor deposition method in single crystal preparation, but also opens new doors for the application of intermediate-temperature thermoelectric materials. As this research progresses, we may see more high-efficiency thermoelectric devices based on SnSe single crystals in the future, bringing cleaner and more efficient energy solutions to our lives.
