Pyrolytic Boron Nitride Conical Crucible | PBN crucible
Material: Pyrolytic Boron Nitride /PBN
Production process: CVD
Purity: >99.99%
Supplier: QSAM
Chemical content of QSAM PBN crucible
Pysical properties of QSAM PBN crucible
- Product Details
Pyrolytic Boron Nitride (PBN) crucible
is produced by CVD process (chemical vapor deposition) to create its solid body and all the boron nitride crystals grow parallel to the surface of which the vapor is deposited on. Due to the nature of CVD process, thick wall products (>3mm) is usually not available. PBN is also a good choice for extremely high purity boron nitride. As the purity of gas material (BCl3 + NH3 --> BN +HCl)is a lot higher than regular boron nitride powder, purity for PBN is quite high and 99.99% is the typical grade. With it's high purity, high mechanical strength, high performance with molten metal and salts, PBN is becoming an widely used material in high vacuum processes. Without showing melting point and high thermal conductivity, pyrolytic material are ideal to be used as vacuum furnace parts. The CVD process give this pyrolytic boron nitride almost perfect layered structure, which leads to anisotropic thermal conductivity, making it an ideal material to make crucibles for crystal growing. PBN conical shape crucibles are frequently consumed in crystal growth process.
The pyrolytic boron nitride crucibles QSAM could supply are custom produced from our CVD furnance with high purity material. Dimensions of PBN crucibles are limited within 12“Dia. x 12"H, by equipment size.
List Of PBN Products QSAM supplies
| PBN Disc/Sheet/Ring |
| PBNMachined Products and Custom Parts |
PBN Crucible Related Articles
A brief direction of MBE crucible-Ta or PBN?
Quick intro for Residual stress and strain in PBN crucible resulting from thermal anisotropy
Understanding the VGF Process and the Role of PBN Crucible
What is PBN ceramic (pryolytic boron nitride)
Analysis of PBN crucibles after vacuum baking

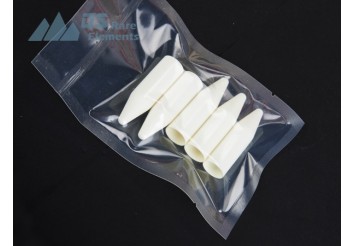

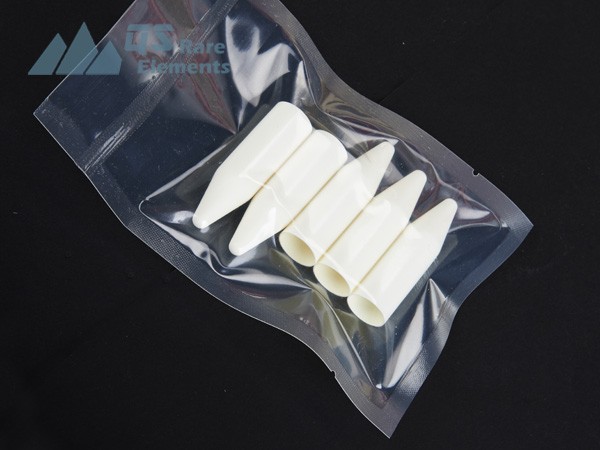

PBN Crucible Packaging
As a ceramic material, boron nitride is quite fragile in a lot of cases. The PBN crucibles are usually hold in plastic bags by vacuum, and protect with heavy foam.
