Quartz vs. PBN Crucibles: Undoped LEC GaAs Growth
Introduction
In the research article titled "Quartz Versus PBN - The Effect of Crucible Type on Undoped LEC GaAs," James S. C. Chang investigates the impact of crucible selection on the growth of undoped LEC (Liquid Encapsulated Czochralski) GaAs crystals. Published in 1985, this study takes us back to an era of rapid technological advancements in semiconductor technology. By examining the characteristics of quartz and PBN (Pyrolytic Boron Nitride) crucibles, the author explores their comparative suitability for crystal growth and discusses the conditions under which each crucible material excels.
Comparing Quartz and PBN Crucibles
Quartz Crucibles
Quartz crucibles have been frequently used in crystal growth because of their thermal stability and low cost. However, they do possess certain limitations:
Firstly, quartz reacts more with molten GaAs, potentially causing impurity contamination. This comes from impurities in the quartz material itself. As a result, quartz crucibles can lower crystal quality and device performance.
Additionally, quartz releases oxygen during the LEC process that gets absorbed by the growing GaAs crystal. This oxygen contamination negatively impacts the electrical properties of GaAs. Therefore, quartz crucibles do not work well when high-purity crystals are required.
In summary, the reactivity and impurities of quartz crucibles make them problematic for quality-sensitive GaAs crystal growth. Other more inert crucible materials may help maintain purity and improve crystal results.
PBN Crucibles
PBN ceramic material offer several advantages over quartz crucibles, making them a preferred choice under specific conditions:
PBN crucibles are known for their superior material purity, as they exhibit significantly lower impurity content compared to quartz crucibles. This characteristic reduces the risk of contaminating the growing GaAs crystal, resulting in higher-quality crystals with improved electrical and optical properties.

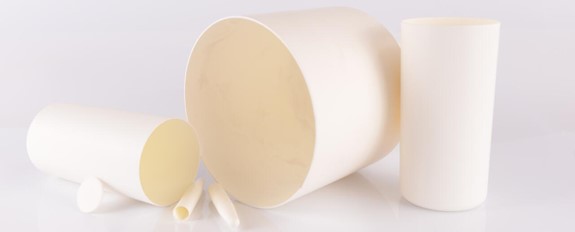

PBN crucibles
Additionally, PBN crucibles demonstrate excellent chemical inertness, meaning they do not react with molten GaAs. This inertness prevents impurity contamination and unwanted reactions during crystal growth, ensuring that the synthesized GaAs crystals maintain their desired properties. This characteristic is particularly advantageous when producing high-purity crystals and when precise control over material composition is required.
PBN crucibles can reduce oxygen contamination during crystal growth. Unlike quartz, PBN does not release oxygen. This prevents oxygen absorption by the growing GaAs crystal. Therefore, PBN is important for getting high-purity GaAs crystals with the electrical properties needed for advanced semiconductors. In other words, PBN crucibles help mitigate a key issue that quartz crucibles have during sensitive crystal growth processes.Furthermore, PBN crucibles exhibit remarkable thermal stability, enabling them to withstand the high temperatures involved in crystal growth processes such as LEC. This stability ensures consistent and controlled crystal growth, facilitating reproducible results and enhancing the reliability of the study.
Choosing the Appropriate Crucible
The selection of quartz or PBN crucibles depends on the specific requirements of the crystal growth process and the intended applications of the resulting GaAs crystals:
Quartz crucibles may be suitable for applications where cost-effectiveness is a priority and the purity level of the GaAs crystal is not a critical factor. However, when producing high-purity crystals with minimal impurity contamination, or when oxygen contamination poses a challenge, PBN crucibles offer an effective solution.
Conclusion
James S. C. Chang's research article sheds light on the comparative analysis of quartz and PBN crucibles in growing undoped LEC GaAs crystals. While quartz crucibles provide thermal stability and cost-effectiveness, PBN crucibles outperform them in terms of material purity, chemical inertness, oxygen contamination mitigation, and temperature stability. Researchers can make an informed choice between the two crucible materials based on the specific requirements of the crystal growth process and the desired properties of GaAs crystals. As technology continues to advance, the selection of crucible materials will play a crucial role in achieving high-quality semiconductors for diverse applications.
