Standard MBE Crucible (PBN 125 54)
Composition:Pyrolytic Boron Nitride (PBN)
Catalog No.:PBN 125 54/415-00-011
Purity:99.99%
Chemical content of QSAM PBN crucible
Pysical properties of QSAM PBN crucible
- Product Details
Buy PBN 125 54 crucible with credit cards
Please click the button below, or send us an inquiry for possible discount on large quantity purchase.
|

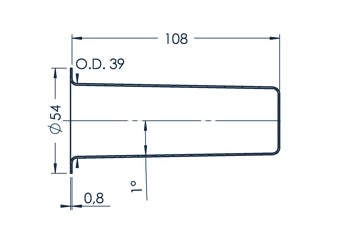

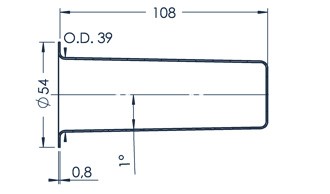

Outer/Lip iameter: |
54mm |
|
Crucible Wall Thickness: |
0.8mm |
|
Reference Price: |
$1,110.00 (Shipping Included) |
|
Typical Lead Time: |
4 weeks |
About MBE Process
MBE (Molecular Beam Epitaxy) is a precise thin film deposition technique used in semiconductor research and manufacturing. It involves the growth of high-quality crystalline layers by directing beams of atoms or molecules onto a substrate in ultra-high vacuum conditions. MBE enables precise control over layer thickness and composition, making it vital for developing advanced electronic and optoelectronic devices.
PBN Crucibles from QSAM
QSAM is supplying all type of PBN crucibles to meet customer demand. Including but not limited to this PBN 125 54, we can provide a series of standard crucibles that fit MBE Components system.
For other PBN products, please check our pages as follow,
List of standard PBN crucibles
PBN Crucible Introduction
The PBN crucible offers significant advantages in high-temperature applications due to its exceptional thermal stability, chemical inertness, and excellent heat transfer properties. The crucible is manufactured using the chemical vapor deposition method, resulting in perfectly layered hBN crystals that grow along the crucible surface, ensuring uniform thermal conductivity. The CVD method also enables the attainment of high purity levels up to 99.99%. These qualities make PBN crucibles highly suitable for crystal growth and other applications that require precise thermal control in a contamination-free environment. With its thermal stability, inertness, heat transfer properties, uniformity, and high purity, the PBN crucible is a reliable choice for industries and researchers seeking optimal performance and consistent results in high-temperature operations.
Packaging of PBN Crucibles
In order to deliver the fragile PBN materials safe, the crucibles are packed in bagweak vacuum, and heavy foam.
