Standard MBE Crucible (PBN c200-84)

Buy PBN c200-84 crucible with credit cards

Please click the button below, or send us an inquiry for possible discount on large quantity purchase.

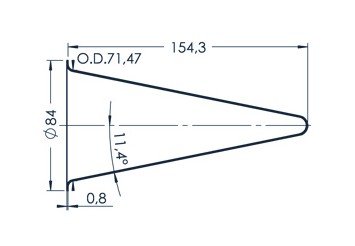

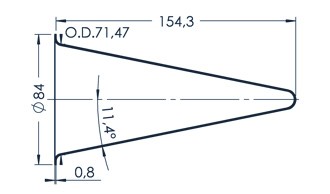

Outer/Lip Diameter: 84mm

Crucible Wall Thickness: 0.8mm

Reference Price: $1,600.00  (Shipping Included)

Typical Lead Time:4 weeks

PBN Crucibles from QSAM

QSAM is supplying all type of PBN crucibles to meet customer demand. Including but not limited to this PBN c200-84, we can provide a series of standard crucibles that fit MBE Components system.

For other PBN products, please check our pages as follow,

List of standard PBN crucibles

Custom made PBN crucibles

PBN Machined parts

PBN Crucible Demonstration

PBN Crucible Introduction

The PBN crucible offers significant advantages in high-temperature processes due to exceptional thermal stability, chemical inertness, and excellent heat transfer properties. Manufactured using chemical vapor deposition (CVD), PBN crucibles feature perfectly layered hBN crystals that grow along the crucible surface, ensuring uniform thermal conductivity. The CVD method also facilitates high purity levels, easily reaching up to 99.99%. These qualities make PBN crucibles ideal for crystal growth and applications requiring precise thermal control and a contamination-free environment. With its thermal stability, inertness, heat transfer properties, uniformity, and high purity, the PBN crucible is a reliable choice for industries and researchers seeking optimal performance and consistent results in high-temperature processes.

PBN Crucible Related Articles

A brief direction of MBE crucible-Ta or PBN?

Quick intro for Residual stress and strain in PBN crucible resulting from thermal anisotropy

Understanding the VGF Process and the Role of PBN Crucible

What is PBN ceramic (pryolytic boron nitride)

Analysis of PBN crucibles after vacuum baking

Packaging of PBN Crucibles

In order to deliver the fragile PBN materials safe, the crucibles are packed in bag weak vacuum, and heavy foam.
