Standard MBE Crucible (PBN C5-27)

Buy PBN C5-27 crucible with credit cards

Please click the button below, or send us an inquiry for possible discount on large quantity purchase.

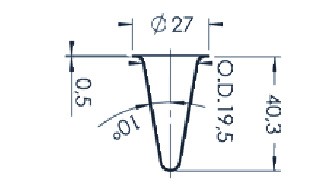

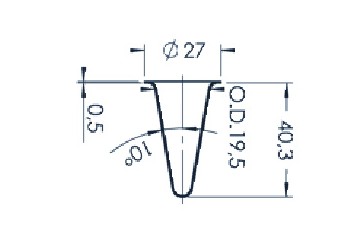

Outer/Lip Diameter: 27mm

Crucible Wall Thickness: 0.5mm

Reference Price: $450.00  (Shipping Included)

Typical Lead Time:4 weeks

PBN Crucibles from QSAM

QSAM is supplying all type of PBN crucibles to meet customer demand. Including but not limited to this PBN C5-27, we can provide a series of standard crucibles that fit MBE Components system.

For other PBN products, please check our pages as follow,

List of standard PBN crucibles

Custom made PBN crucibles

PBN Machined parts

PBN Crucible Demonstration

PBN Crucible Introduction

The PBN crucible offers significant advantages in high-temperature applications due to its exceptional thermal stability, chemical inertness, and excellent heat transfer properties. Manufactured using chemical vapor deposition (CVD), PBN crucibles feature perfectly layered hBN crystals that grow along the crucible's surface, ensuring uniform thermal conductivity. The CVD method also enables the attainment of high purity levels up to 99.99%. These qualities make PBN crucibles ideal for crystal growth and other applications requiring precise thermal control in a contamination-free environment. With their thermal stability, inertness, heat transfer properties, uniformity, and high purity, PBN crucibles are a reliable choice for industries and researchers seeking optimal performance and consistent results in high-temperature operations.

Related Articles

Quartz Vs Pbn Crucibles Undoped Lec Gaas Growth

Lec Growth Of Gaas Stoichiometry Controlled Compensation

Crystal Grow Of Inp With Vgf Method

Introduction Of Mbe Method

Enhancing Gamma-Ray Detector Technology through Advanced Crystal Growth Modeling

Packaging of PBN Crucibles

In order to deliver the fragile PBN materials safe, the crucibles are packed in bagweak vacuum, and heavy foam.
