Introduction to thin film coating of Erbium and its compounds

Erbium is a rare earth metal that has unique physical and chemical properties. It was first discovered in 1843 by Swedish chemist Carl Gustaf Mosander, who extracted it from a sample of yttria. Erbium is named after the Swedish village of Ytterby, where the sample was originally discovered. It is a soft, silvery-white metal that is relatively stable in air, but can react with water and acids.

Erbium is one of the least abundant rare earth elements, making up only about 0.0005% of the Earth's crust. It is typically found in minerals such as monazite, xenotime, and euxenite. Erbium has a high melting point of 1529°C and a boiling point of 2868°C, making it useful in high-temperature applications.

Particularly in the electromagnetic spectrum's infrared region, erbium possesses special optical properties. It can both emit and absorb near-infrared light, which makes it valuable for the development of fiber-optic amplifiers for optical devices such as telecommunications. In addition, erbium is employed in the manufacture of lasers, where it functions as an active medium to emit visible and infrared light.

Erbium is useful in the creation of advanced magnetic materials due to its distinct magnetic properties in addition to its optical ones. Since it is paramagnetic, a magnetic field will only weakly attract it. Because of this characteristic, it can be used to create magnetic materials such as permanent magnets and magnetic data storage devices.

Erbium is also used in the production of nuclear control rods, which are used in nuclear reactors to regulate the rate of nuclear reactions. It has a high neutron absorption cross-section, making it useful for this application.

Thin films of erbium metal and its compounds

The potential uses of erbium metal and its compounds in thin films in a variety of industries, including electronics, optics, and energy, have been thoroughly investigated. Several compounds, including erbium oxide, erbium nitride, and erbium silicate, have been investigated for their potential applications as thin film materials. Potential uses for pure erbium metal thin films in magneto-optics, spintronics, and magnetic storage have also been investigated.

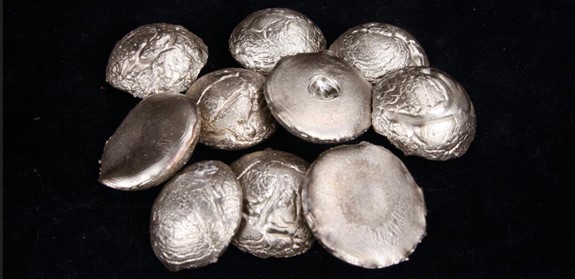

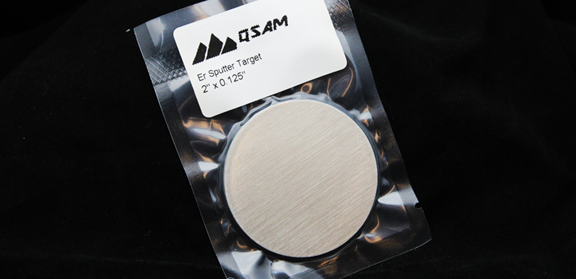

One of the most common methods to produce thin films of erbium metal and its compounds is by using sputtering target of these materials. Erbium sputtering targets are used in various deposition techniques, such as magnetron sputtering and reactive sputtering, to produce high-quality thin films with excellent adhesion and uniformity. Sputtering targets are made of high-purity erbium metal or its compounds, which are compressed into a dense and uniform shape.

High insulating materials like erbium oxide (Er2O3) are helpful for optical and electronic applications. With a wide bandgap of 5.8 eV and a high melting point of 2400°C, it finds utility in high-power and high temperature applications.Erbium oxide thin films have been investigated for their potential applications in optoelectronics, photovoltaics, and other electronic devices, and are commonly produced using erbium oxide sputtering targets.

Erbium nitride (ErN) is a semiconductor material that can be used in high-temperature applications due to its wide 2.9 eV bandgap and high thermal stability. The possible uses of ErN thin films, which are typically made with erbium nitride sputtering targets, in optoelectronics, spintronics, and thermoelectrics have been investigated.

The potential of erbium silicate (Er2SiO5) as a thin-film material has also been investigated. Erbium silicate sputtering targets are widely used to produce erbium silicate thin films, which are commonly studied for their potential applications in microelectronics, where they can be used as a gate dielectric in transistors.

Conclusion

In summary, erbium is a rare earth metal having special chemical and physical characteristics that make it valuable in a variety of industries, including electronics, optics, and energy. For their possible uses in these domains, thin films of erbium metal and its compounds have been thoroughly investigated. Erbium sputtering targets are frequently used to create these films. To fully investigate the potential of erbium-based thin films and their uses in diverse fields, more investigation is required.
