Tungsten (W) Crucible

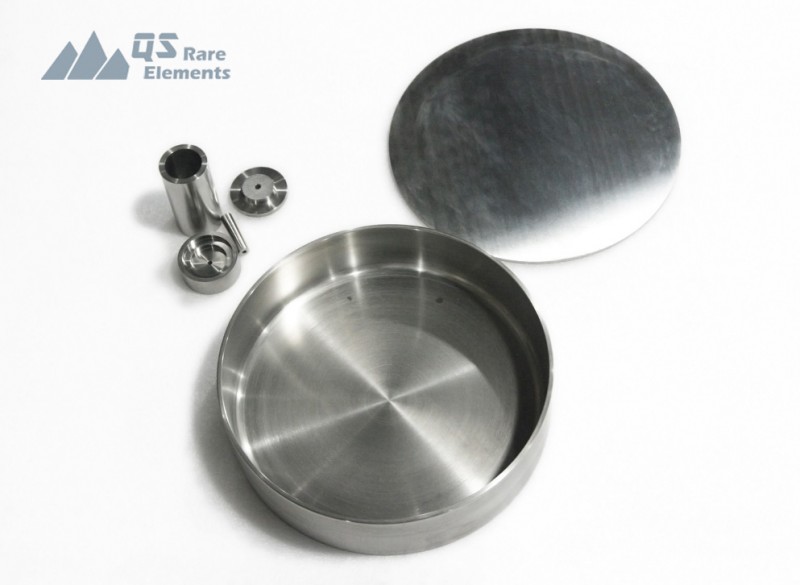

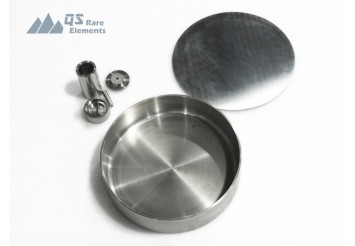

Tungsten Crucible Description

QS Advanced Materials is a supplier of advanced materials and rare elements products, located in NY As a supplier of advanced materials, tungsten crucibles are one of our major products.

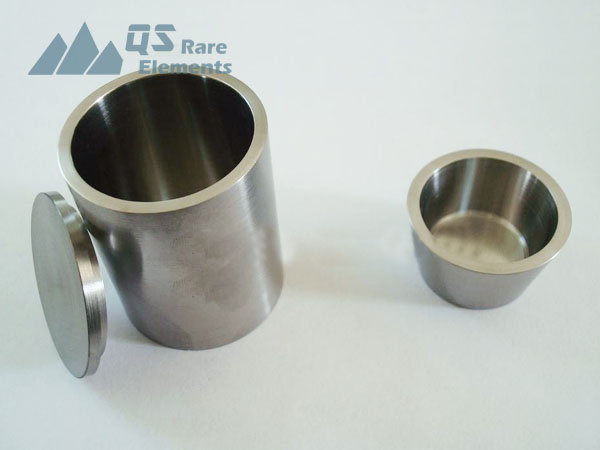

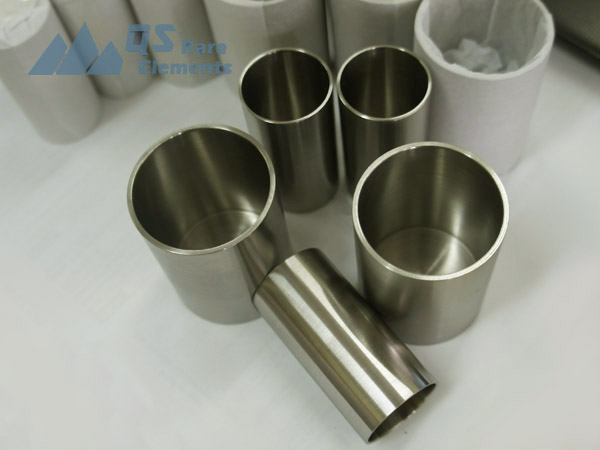

 Relatively smaller tungsten crucibles are machined from W rods. These crucibles are available in short lead time with small MOQ. To reduce the waste of tungsten, larger crucibles are usually produced by powder metallurgy technique

  With excellent high temperature resistance, tungsten crucibles are ideal container for crystal growing. The inner surface could be polished to obtain a smoother surface and enhance performance. To make sure the tungsten material has a perfect structure, the crucibles are tested by both ultrasonic and eddy current (for machined tungsten crucibles,  raw material rods are tested).

QSAM Tungsten crucible specification

Material:99.95% tungsten

Working environment:<2450 C, vacuum/reduced atmosphere

Max. Size:10mm OD x 200mm H

Price:P.O.R.

Regular dimension for QS tungsten crucibles.

Diameter (mm)	Wall Thickness (mm)	Length (mm)
30 ~ 60	2 ~ 10	20 ~ 600
60 ~ 120	3 ~ 15
120 ~ 180	3 ~ 15
180 ~ 300	5 ~ 20
300 ~ 400	8 ~ 20
400 ~ 500	8 ~ 30

Properties for pure tungsten

Atomic Mass	183.84
Electrode Potential	4.5V
Hardness Brinell	294
Hardness Knoop	318
Hardness Rockwell A	66
Hardness Rockwell C	31
Hardness Vickers	310
Tensile Strength, Yield	750MPa
Modulus of Elasticity	350GPa (2300°C)
Electrical Resistivity	0.00000565 ohm-cm
Thermal Expansion (CTE, Linear)	4.40 µm/m-°C
Thermal Conductivity	117 W/m-K(1000°C)
Specific Heat Capacity	163.3 W/m-K

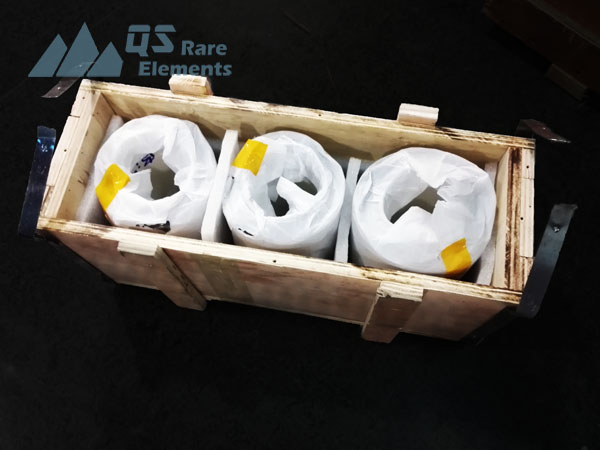

Tungsten crucible packing

Tungsten(W) has very high density. Most of tungsten products need heavy foam and wooden crate.
