The Many Uses of Magnetron Sputtering in Industry and Research

Advancements continue improving magnetron sputtering systems decades after initial development. Recently, closed-field unbalanced magnetron sputtering techniques emerged, enabling routine deposition of high-quality coatings from diverse materials. Ongoing innovations expand capabilities, allowing these systems to precisely engineer more surfaces than ever.

  Microelectronics

Sputter deposition of thin films for semiconductor devices, integrated circuits, LEDs, optical coatings, and interconnects.

 Wear-resistant coatings

Hard coatings like titanium nitride to protect cutting tools, molds, and mechanical parts.

  Decorative coatings

Coatings for decorative finishes on appliances, jewelry, and watch components.

  Corrosion protection

Coatings to provide corrosion and oxidation resistance. Used in aerospace, automotive, and construction industries.

  Optical coatings

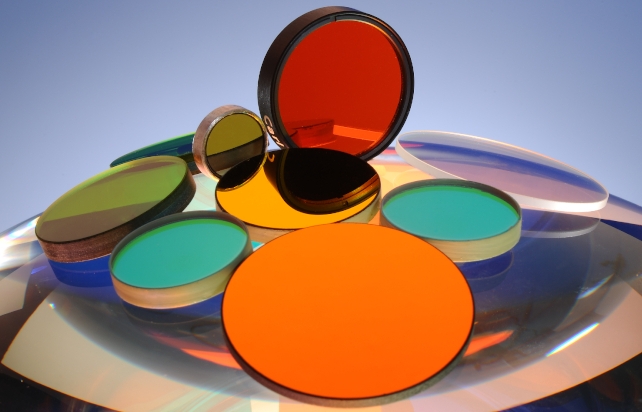

Some metal, oxide and fluoride coumpounds such as CaF2 are used to make reflective and anti-reflective coatings for lenses, mirrors, and optical devices.

  Biomedical implants

Biocompatible coatings on medical implants made of titanium, stainless steel, and cobalt-chromium alloys.

  Magnetic media

Sputtered magnetic thin films for hard disk drives, magnetic recording heads, and magnetic RAM.

  Photovoltaics

Transparent conductive coatings on photovoltaic cells to collect and transmit light.

The versatility of sputter deposition enables a vast range of applications across industries.

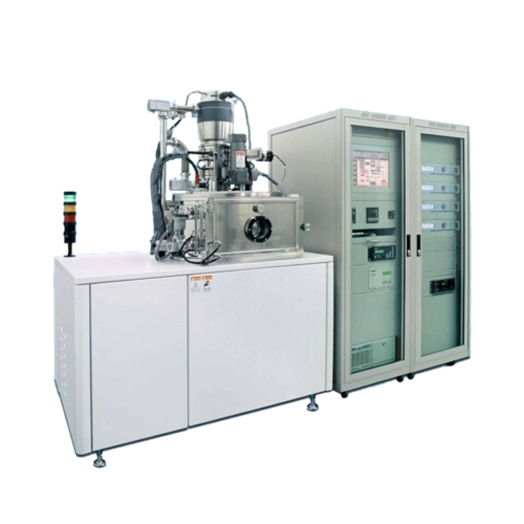

The Indispensable Magnetron Sputtering Process

The versatile magnetron sputtering process applies nearly any material, especially those with impractically high melting points. Unlike thermal deposition, magnetron sputtering excels at coating entire surfaces uniformly. Utilizing plasma, the system adheres materials strongly across components, circumventing limitations of line-of-sight deposition. With precise control unneeded, magnetron sputtering efficiently modulates vast areas. Still, modern techniques increasingly regulate placement, expanding capabilities. Driven by plasma, magnetron sputtering offers both accessibility and accuracy in surface engineering.

The magnetron sputtering process starts as an applied power source energizes the magnetron, generating a strong negative charge. This charge accelerates positive ions toward target materials with intense kinetic energy. Bombarding the surface, the ions transfer significant energy to target atoms. The impacts eject target atoms which then condense as thin films on substrates. Driven by plasma, the system precisely dislodges and deposits coatings atom by atom.

Sputtering requires the kinetic energy transferred perpendicular to the surface to exceed roughly three times the surface binding energy, similar to the heat of sublimation. In magnetron systems, electrons traverse extended paths, elevating the ionization probability of argon atoms. This sustains a dense plasma, enabling consistent coatings. With robust plasma generation, magnetron sputtering becomes the technique of choice for depositing high-caliber thin films. Target bombardment ejects atoms which then condense onto substrates, layering materials atom by atom through this elegant yet powerful approach.

magnetron sputtering has emerged as a versatile and powerful thin film deposition technique, enabling the fabrication of a wide range of functional coatings and materials. Its ability to precisely control film composition, thickness, and structure has made it indispensable in diverse industries, from microelectronics to renewable energy. As technology continues to advance, the applications of magnetron sputtering will undoubtedly expand, driving further innovations in materials science and engineering. With its exceptional capabilities, magnetron sputtering remains at the forefront of thin film deposition, shaping the future of advanced materials and device technologies.
