Understanding the VGF Process and the Role of PBN Crucible
The VGF or Vertical Gradient Freeze process is a widely used method for growing single crystals in semiconductor manufacturing, optics, and other industries. This technique allows for precise control over crystal growth, resulting in high-quality crystals with very few defects.
A critical component of the VGF process is the crucible, which is a container that holds the material being melted and grown into a crystal. In this article, we will focus on the use of a PBN (pyrolytic boron nitride) crucible in the VGF process and how it helps to achieve high-quality crystals with minimal contamination.
Understanding the VGF Process
Before diving into the specifics of the PBN crucible, let's first understand the VGF process.
The VGF process involves heating a material in a crucible until it melts. Then, a small amount of the molten material is lifted out of the crucible via a seed crystal attached to a rod. As the seed crystal is slowly raised, the molten material cools and solidifies into a single crystal.
While the crystal is growing, the temperature gradient in the crucible is carefully controlled to ensure that the crystal grows in the desired direction and at the desired rate. This process can take hours or even days, depending on the size and complexity of the crystal.
The resulting single crystal has a highly organized lattice structure, making it an ideal material for use in electronic devices, LEDs, solar cells, and other applications.

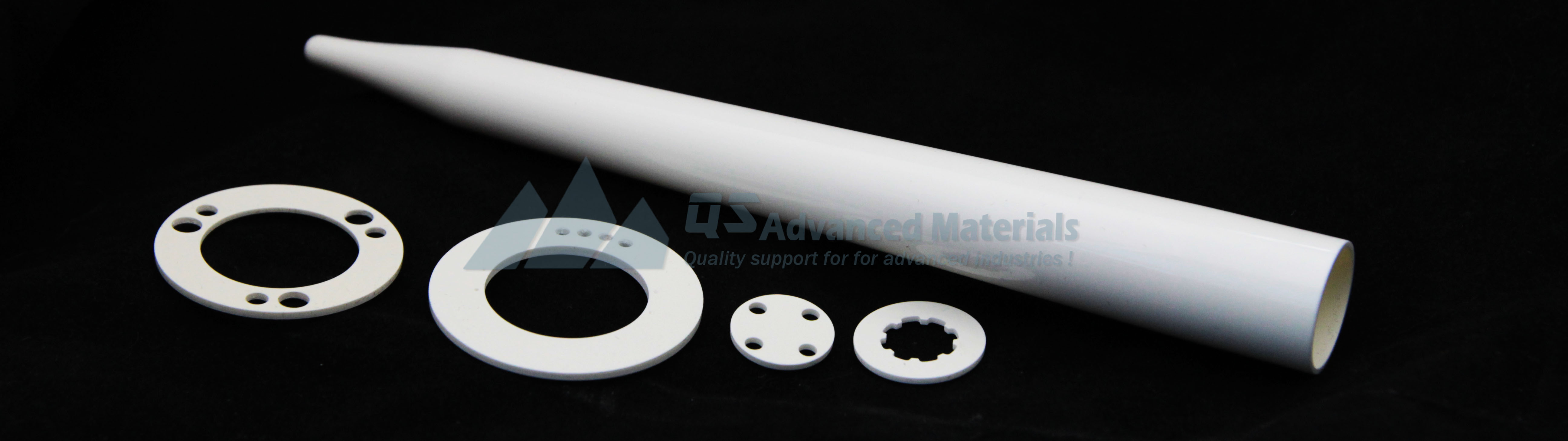

The Role of PBN Crucible in the VGF Process
Now, let's discuss the role of the PBN crucible in the VGF process.
PBN is a synthetic ceramic material made from boron nitride, which is highly resistant to chemical and thermal degradation. It has a high melting point (2800°C) and is extremely pure. PBN is an ideal material for crucibles used in the VGF process because it does not react with most materials and does not add impurities to the growing crystal.
When selecting a crucible material, it is essential to consider its effect on the final crystal's purity and crystalline structure. Contaminants can affect the crystal's performance by forming unwanted defects or reducing its conductivity. Using a PBN crucible ensures that the resulting crystal is as pure and defect-free as possible.
Advantages of Using a PBN Crucible
PBN (Pyrolytic Boron Nitride) crucibles offer several advantages for VGF (Vertical Gradient Freeze) process, including:
High purity: PBN crucibles have an extremely high level of purity, which makes them ideal for use in high-tech applications such as VGF. This high degree of purity means that the crucible will not contaminate the crystal during growth, ensuring a pure and high-quality end product.
Chemical stability: PBN is a very stable material and is resistant to most chemicals. This means that the crucible can withstand the high temperatures and reactive materials used in VGF without deteriorating, making it a durable and long-lasting option.
Low thermal expansion: PBN has a very low thermal expansion coefficient, which means that it does not expand or contract significantly in response to changes in temperature. This makes it an ideal choice for use in VGF, where precise temperature control is critical.
Smooth surface finish: PBN crucibles have a very smooth surface finish, which reduces the likelihood of crystal seeding and nucleation on the walls of the crucible. This helps to ensure that the crystals grown are of a consistent size and shape.
Easy to clean: PBN is a non-porous material, which means that it is easy to clean and does not retain contaminants. This makes it a hygienic option for use in VGF.
Overall, the use of a PBN crucible in VGF process ensures higher quality, reduction in contamination risks, better performance, and lower costs long term due to its durability.
