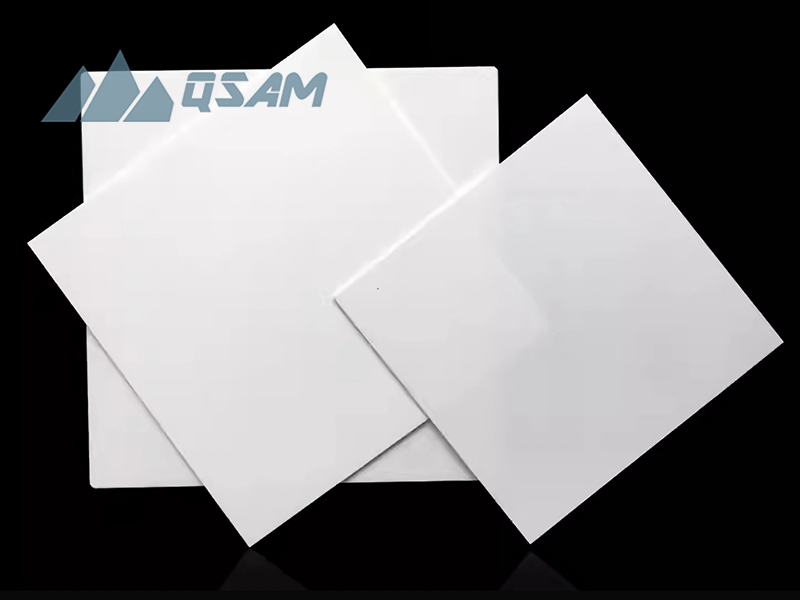

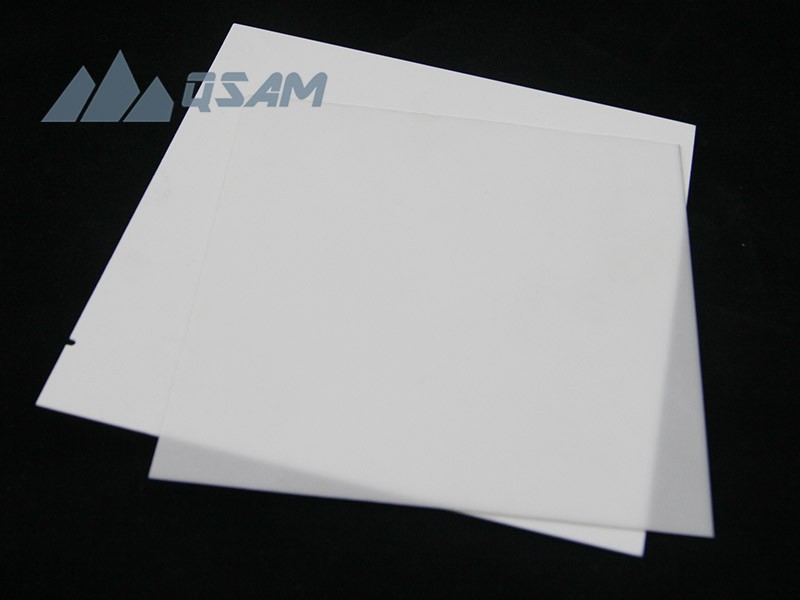

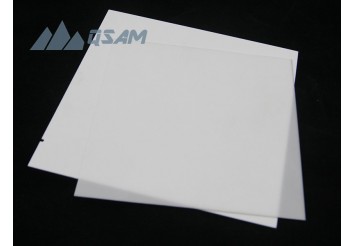

Yttria Stabilized Zirconia (YSZ) Sheets

Our YSZ ceramic sheets

QS Advanced Materials Inc is a United States company that makes custom ceramic products. We specialize in zirconia materials. Our Yttria Stabilized Zirconia (YSZ) sheets are designed to meet client requirements. Our YSZ sheets are durable, heat resistant, and resist wear and corrosion. This makes them useful across industries. Please contact us if you need tailored YSZ sheets. At QSAM, we focus on quality. We ship our ceramic products worldwide to the UK, Europe, and other markets. Whether you require custom or standard sizes, our team will meet your needs. We make sheets to high standards with great service. For specialized zirconia, rely on QSAM and our reliable YSZ sheets.

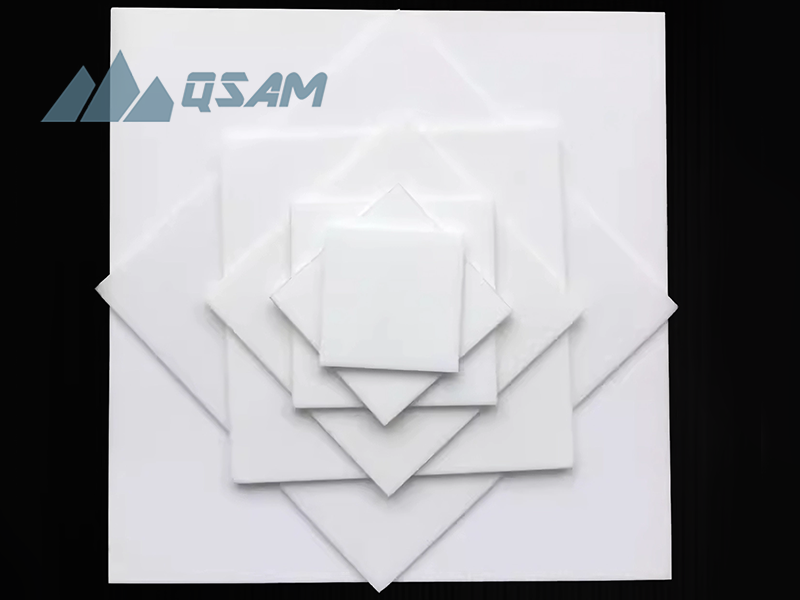

Regular sizes and reference prices

Dimensions (mm)	Price /pk	For 1 pack of
100x100x1	$360	6ea
100X100X1	$380	4ea
100X100X2	$460	4ea
100x100x3	$320	2ea

YSZ Sheets introduction

Yttria Stabilized Zirconia (YSZ) sheets are valued for their superior properties compared to traditional alumina ceramics. With a composition of 94.7% zirconia and 5.2% yttria by weight, YSZ exhibits remarkable wear and corrosion resistance. Producing high-quality YSZ sheets requires meticulous processing and shaping methods.

Manufacturing begins with cold isostatic pressing of YSZ powder into blocks. These green bodies are then precision machined into plates or sheets using diamond cutting tools. To remove any flaws, the YSZ sheets undergo surface grinding and lapping, resulting in a smooth finish. The sheets are carefully dried to minimize cracks before sintering at high temperatures up to 1600C. During sintering, the YSZ particles fuse together as the material densifies into a strong, consolidated sheet. Finally, the fired YSZ is subject to high precision grinding and polishing using diamond abrasives. This produces the exceptional dimensional accuracy and surface quality that make YSZ sheets ideal for demanding applications in optics, electronics, and precision tooling. With every step closely monitored, this careful production process yields YSZ sheets renowned for their durability, purity, and performance.

Zirconia ceramics (3% YSZ, YTZP) performance

Density	6.05 g/cm3
Water absorption	<0.05%
Firing temperature	1550C
Hardness	1350 HV
Compression strength	25000 MPa
Thermal expansion coefficient	9.5x10-6 /C
Bending strength	950 MPa

Applications of Yttria Stabilized Zirconia (YSZ) sheets

Yttria-Stabilized Zirconia (YSZ) ceramics are highly sought after for their exceptional wear resistance, making them a top choice for numerous industrial applications where durability is key. In the tooling industry, YSZ extends the life of cutting tools, maintaining sharp edges against hard materials. It's also pivotal in manufacturing wear-resistant pump and valve parts, crucial in abrasive fluid handling systems. Bearings crafted from YSZ endure high speeds and loads with minimal lubrication, while its use as grinding media ensures purity and efficiency in milling operations. Automotive components benefit from YSZ's toughness, enhancing the longevity and performance of gears and engine parts.
